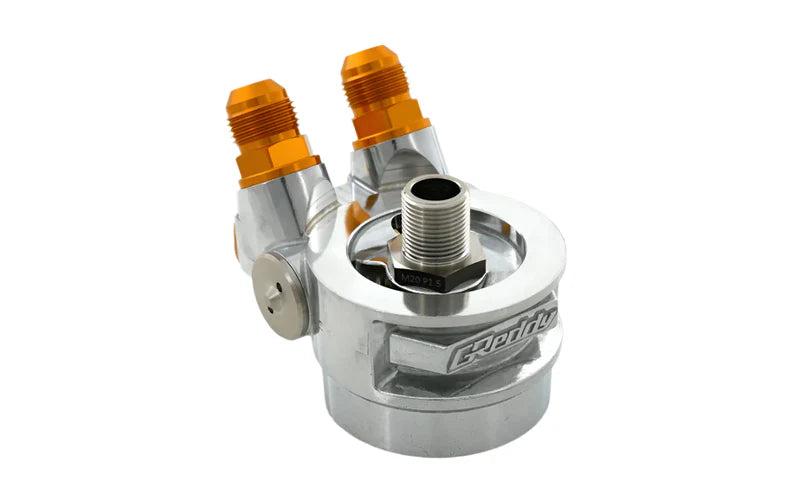

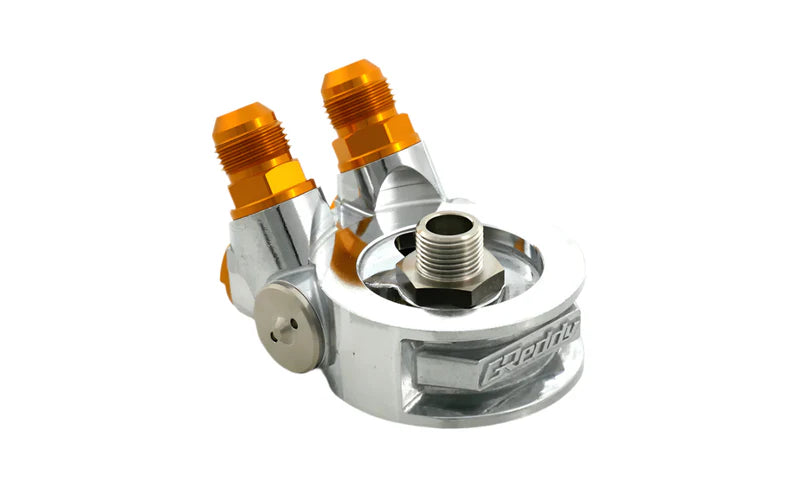

Trust / GReddy Type-E M20x1.5 Thermostat Sandwich Plate -10AN
Trust / GReddy Type-E M20x1.5 Thermostat Sandwich Plate -10AN
Part Number: 12401126
Trust / GReddy Type-E M20x1.5 Thermostat Sandwich Plate -10AN
Engine Block threads: M20 x P1.5
Oil Filter threads: 3/4 x 16UNF
Suits oil filters with lower o-ring seal sizing:
OD - 64mm
ID - 57mm
* Built in thermostat allows the engine to warm up faster.
* Ideal for getting oil up to temp before it passes through the cooler, this helps keep engine wear to a minimum.
* -10AN oil inlet and outlet fittings for common oil cooler setups.
* Thermostat opens at 71-82 Degrees.
* Fittings can be mounted either straight outwards or on a 45-Degree angle for better clearance depending on the application (both included)
* Some applications will require you to run a smaller sized oil filter to ensure proper seal.
Not in stock?
If this product is not in stock it can be sea or air freighted depending on the urgency. 5-7 days (air freight) or 2-3 months (sea freight). Email performance@nst.co.nz to order.
