TOMEI

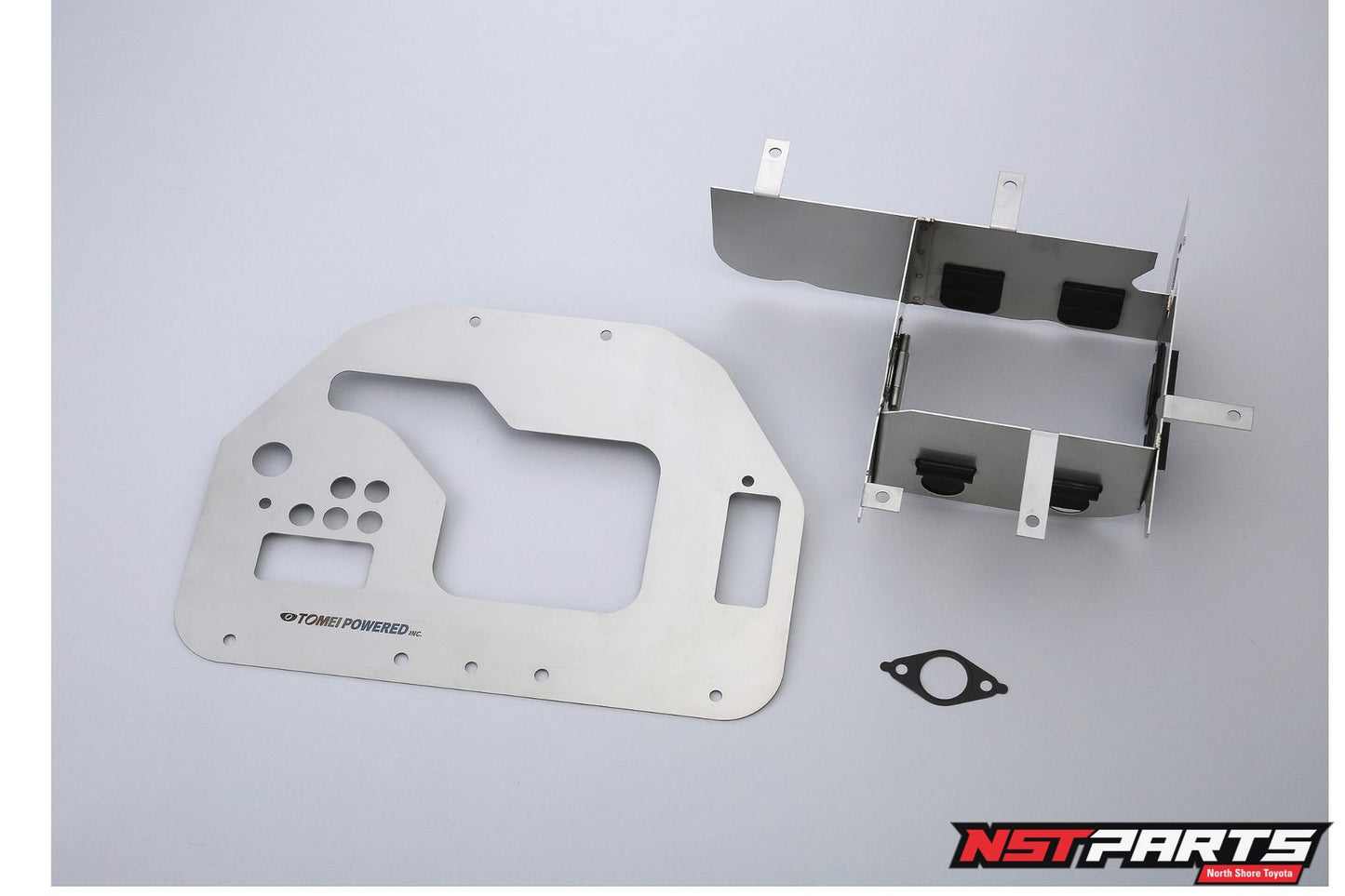

TOMEI Toyota Oil Pan Baffle Plate 1JZ / 2JZ - Type F1

TOMEI Toyota Oil Pan Baffle Plate 1JZ / 2JZ - Type F1

$456.40 NZD
$0.00 NZD $456.40 NZD
Sale Sold out

GST Included

Part Number: 194005

Toyota Aristo JZS161 Mark 2 / Verossa JZX110 JZX110W

During hard acceleration, deceleration and cornering, the sudden change in inertial forces will cause the oil to jump and move around too much. When this happens, the oil can move away from the oil pickup, which then in turn cuts oil supply to the engine. The TOMEI baffle plate is designed to prevent this problem from happening especially when the car is used for competition use.

Material: SUS304
Upper Baffle Thickness: 1.2mm
Lower Baffle Thickness: 1.2mm
Weight: Upper 475g / Lower 635g (including rubber valve)

This product has been designed to fit Toyota P/N: 12102-46040 (OIL PAN NO.2) and P/N:Â 15104-46070 (STRAINER ASSY) only.

Type F1
