SQ Engineering 20V 4AGE Distributor Cap Relocation and Lead Kit

SQ Engineering 20V 4AGE Distributor Cap Relocation and Lead Kit

Regular price $427.87 NZD
Regular price $511.75 NZD Sale price $427.87 NZD
Sale Sold out

GST Included

Part Number: SQEDRK

SQ Engineering 20V 4AGE Distributor Cap Relocation and Lead Kit

This kit is very easy to install, works on all 20V Silvertop and Blacktop, requires minimal tools and has a warranty!
Requires no customisation to the cylinder head but only works on the original exhaust cam belt pulley, not adjustable types.

Comes with main bracket, centre shaft, extended lead, locator and all of the fasteners required for the install.

Like all of SQ-Engineerings products, this kit has been improved with each batch.
The current version is the V6 which is CNC machined out of a single aluminium block which results in both a high rigidity and light weight. Due to a being redundant there is no central locating bearing or any form of adjustment. Just bolt this on and it works.

This kit works by moving only the distributor cap and rotor to the front of the engine, the distributor base is left in place.
This has many advantages in terms of function, packaging and in regard to wiring.
The original distributor base needs to be covered, and a distributor blanking cover is required (see our other auctions)

As for the ignition leads all bar the longest lead can be reused.
A single custom lead is included that is 50mm longer to reach the fourth cylinder.
It is of a look and construction that is very similar to the genuine leads and will not look out of place.

When using this kit, the original timing cover can fitted if it is modified to suit.
A matching hole needs to be cut out of the cover.

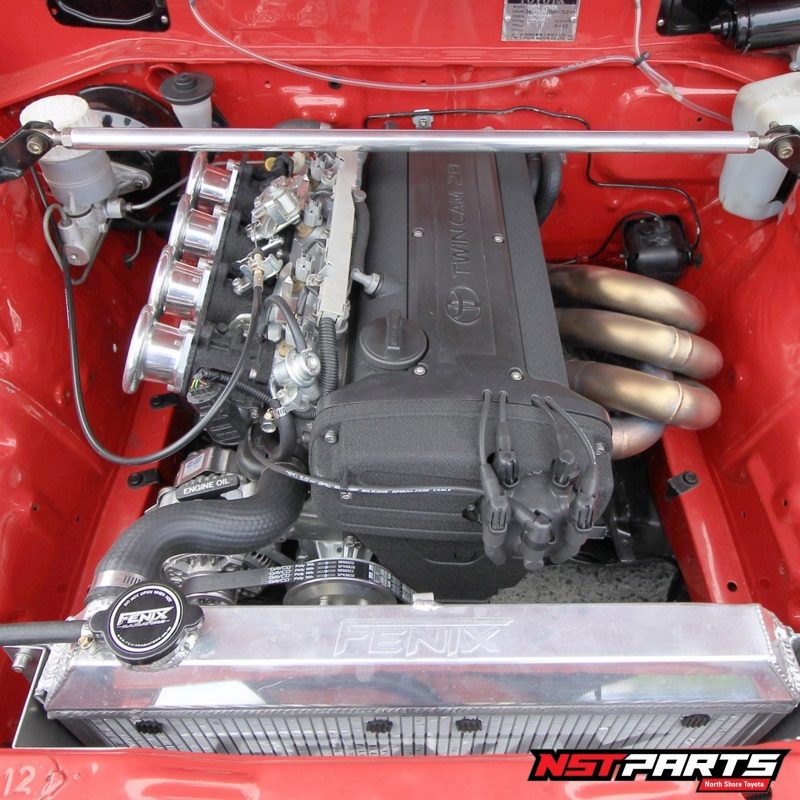

This can be seen in some of the photos (red engine bay)
This engine has also had four small slots cut in the top cover for the leads to enter.
