SQ Engineering AE86 to J160 Gearbox Cross Member

SQ Engineering AE86 to J160 Gearbox Cross Member
SKU: SQAEJ1GM

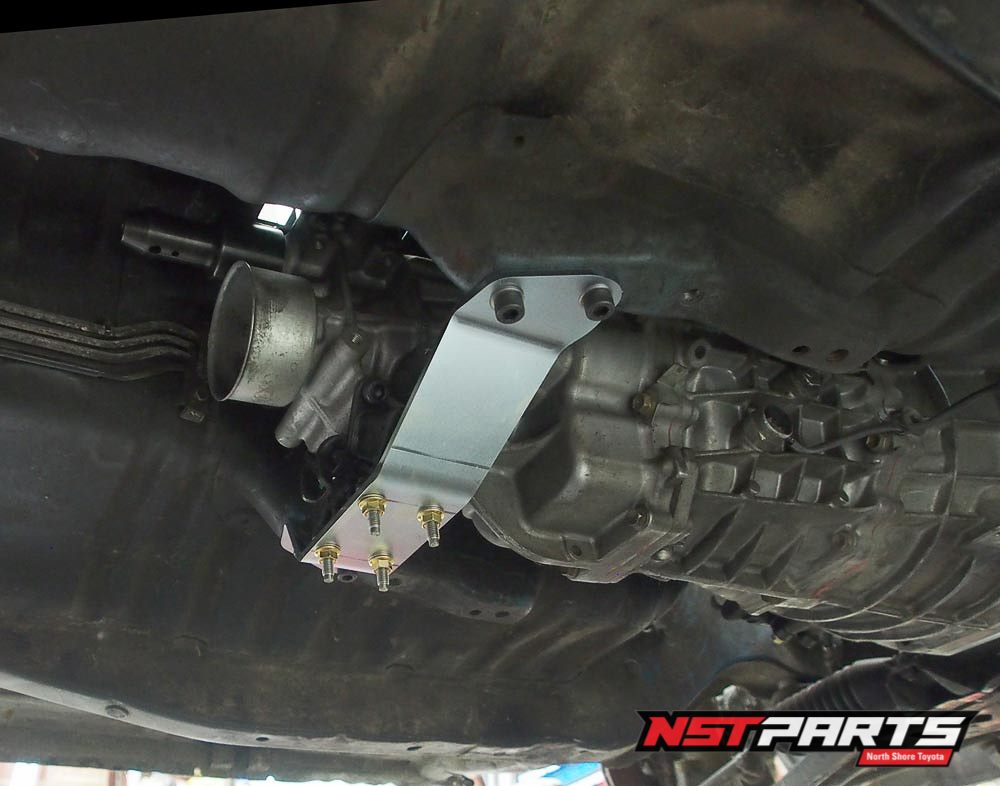

These J160 gearbox mounting crossmembers are for those who have an AE86 and are using either one of the SQE 4A to J160 gearbox adapters. They feature a simple but strong single piece steel construction that have been Zinc plated for maximum corrosion protection and are supplied x4 nuts and washers for the rubber mount.

Part compatibility
Car model: Designed only for use with the AE86 model car body, even though the KE70 and AE71 model vehicles are based off the same chassis they however have different mounting points welded to the underbody and hence this mount is not compatible.

Fuel lines: On the AE86 the metal fuel lines are originally routed so that they cross between sides in the transmission tunnel directly above the gearbox. For additional clearance this mount has been designed to hold the rear of the gearbox down far enough to provide ample room for even when these lines have been upgraded.

Gearbox rubber mount: For the greatest simplicity the original J160 rubber mount is reused (not supplied).

NOTE: These have been designed to suit the SQE gearbox adapter kits with a 4AGE engine only, if the gearbox is fitted to a 3SGE Beams engine then it may not have the mounting holes in the correct location.

Can be used with the NITEPARTS Toyota 4AGE to J160 6 Speed Adaptor Plate
