SQ Engineering 4AGE 20V Throttle linkage kits to suit ITB / DOWN PULL

SQ Engineering 4AGE 20V Throttle linkage kits to suit ITB / DOWN PULL

Regular price $162.08 NZD
Regular price Sale price $162.08 NZD
Sale Sold out

GST Included

Part Number: SQTLK-D

SQ Engineering 4AGE 20V Throttle linkage kits to suit ITB / DOWN PULL
SKU: SQTLK-D

This is for the Downwards Pull Kit
These kits replace the original 4AGE 20V top linkage system and in its place has the throttle cable directly actuate the opening of the throttle bodies from the underside.
For those that use 4AGE 16V engines converted to quad throttles this gives a significant improvement in the throttle feel due to the throttle cable path.

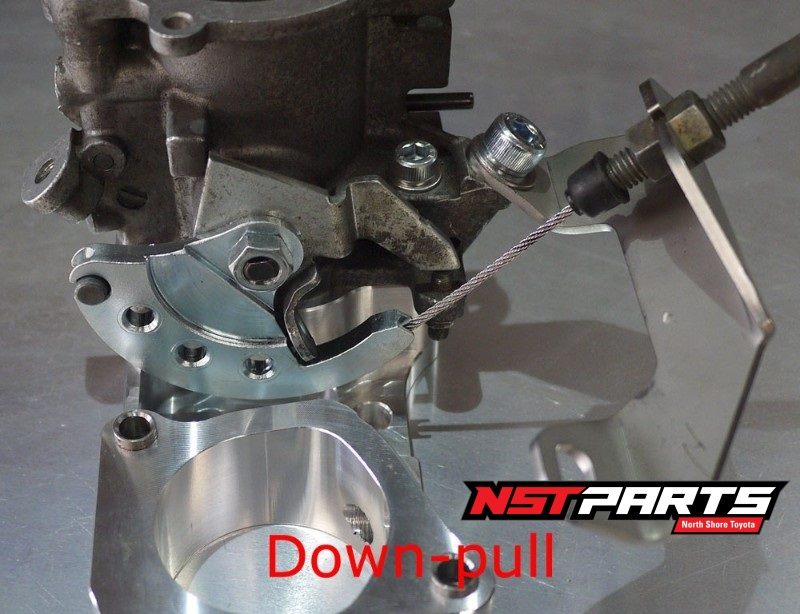

Type 1: Down-pull kit
Suits throttles that are mounted upright as on a 20V engine - this is where the throttle position sensor (TPS) is held at the front of the engine.
- Compatible with the block to throttle body support straps as fitted to 4age 20V engines.
- No modifications required to the throttle bodies.
- The throttle lift off vacuum solenoid needs to be removed, this is easily done and has little to no effect on the engines use.

Throttle body and intake manifold compatibility
- Throttle spacing: The supplied brackets with the kits suit different ranges of spacing from the centre to centre between throttles from the original 20V (87.5mm) right up to 93mm.
- 3sge Beams: Compatible with our 3sge Beams adapter (pictured).
- Throttles: Suit all three of the 20V 4age throttle types.
- Throttle cable type: Due to being able to be routed around or under the brake master cylinder the throttle cable used can vary a great deal in its length. When fitted to an AE71 or AE86 model Corolla / Sprinter even the very long KE70 cable can be used, the original type as used with a 4age 16V engine in a RHD AE86 is not likely to fit.

Not in stock?
If this product is not in stock, it can be ordered from SQ Engineering for you. Please email performance@nst.co.nz to order and to check lead times.

YES WE SHIP INTERNATIONALLY!
If your country or region is not loading in the shipping screen, please email us on performance@nst.co.nz for a shipping quote.
