NSTParts Wilwood Superlite 4-Piston Brake Upgrade Package - DBA 4000 Slotted Rotors

Front Wilwood Superlite Big Brake Kit

This kit includes:

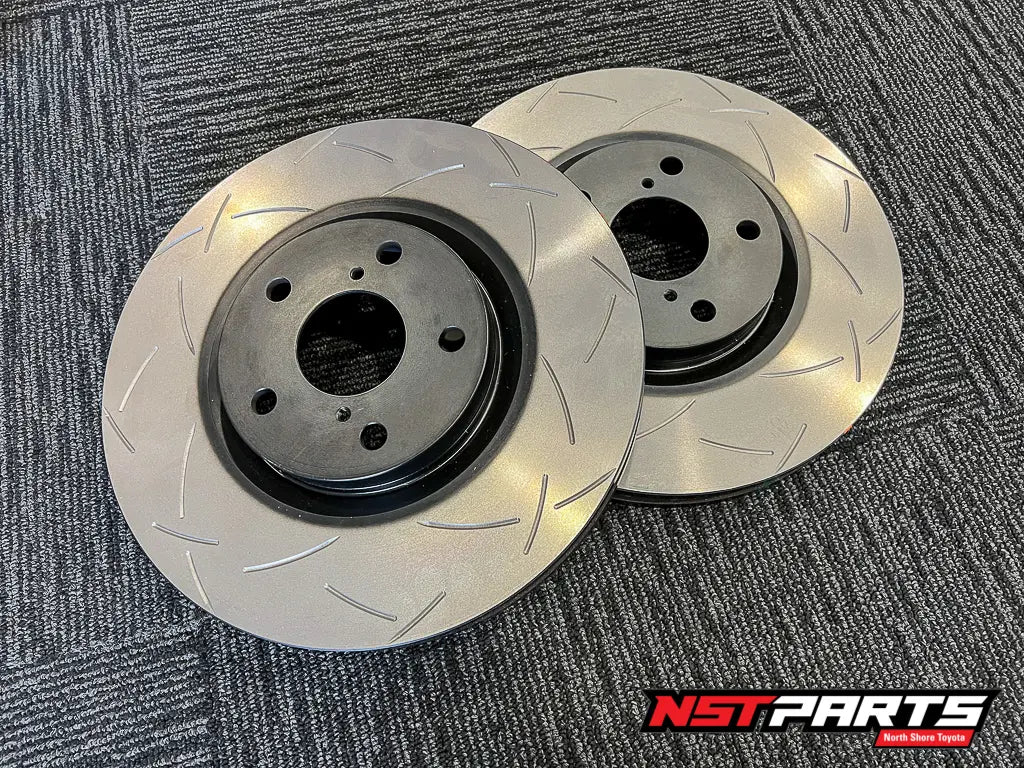

2x DBA 4000 Series T3 slotted brake rotors
2x Custom made caliper brackets
2x HEL Braided Brake hoses

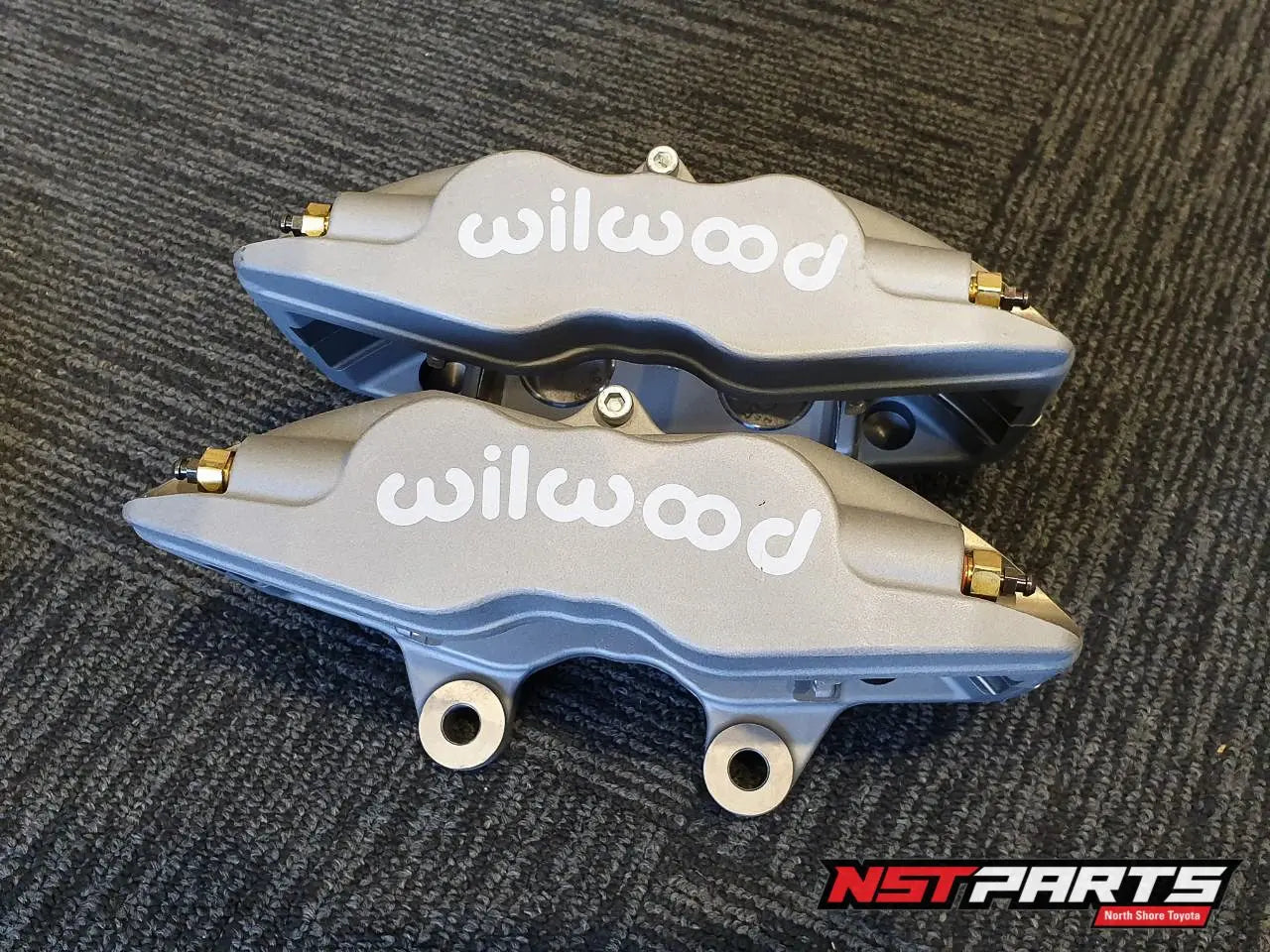

2x Wilwood Forged Superlite 4-Piston Calipers
1x Hawk HP Plus Front Brake Pads

Please get in touch if you would like to swap pads.

This will bolt onto these following vehicles (mostly cars with the sliding 2 piston front calipers) with 124mm bolt to bolt PCD caliper mount.
- Toyota Altezza IS200 IS300 SXE10 GXE10 JCE10 3SGE 1GFE 2JZGE
- Toyota Mark2 / Cresta / Chaser / Verossa / Mark 2 Blit JZX90 - JZX100 JZX110 JZX110W 1JZGTE 1JZGE 1JZFSE (JZX110 may require slight modification to the caliper, which we would recommend a professional to do)
- Toyota Crown JZS171 JZS171W 1JZGTE

Please check your original caliper bolt spacing to confirm fitment

Wilwood Caliper info:
The Superlite FORGED caliper series is the benchmark in short track, late model, modified and open wheel competition.
The new FSLI model series has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube.

Hawk Pad info:
HP Plus utilizes a unique Ferro-Carbon, high-tech friction material that was developed and manufactured for sport driving in autocross and “track day” applications.
Extremely high coefficient of friction makes HP Plus the perfect upgrade over stock for high performance streetcars used in autocross competition or that repetitive, heavy braking.

Disclaimer: Due to the ever-changing rules around LVVTA standards, it is the purchaser’s responsibility to check that these products are compliant with current standards for usage on public roads.
