NITEPARTS Toyota 4AGE to J160 6 Speed Adaptor Plate

NITEPARTS Toyota 4AGE to J160 6 Speed Adaptor Plate

Regular price $748.45 NZD
Regular price $826.56 NZD Sale price $748.45 NZD
Sale Sold out

Part Number: 31115-4AJ16

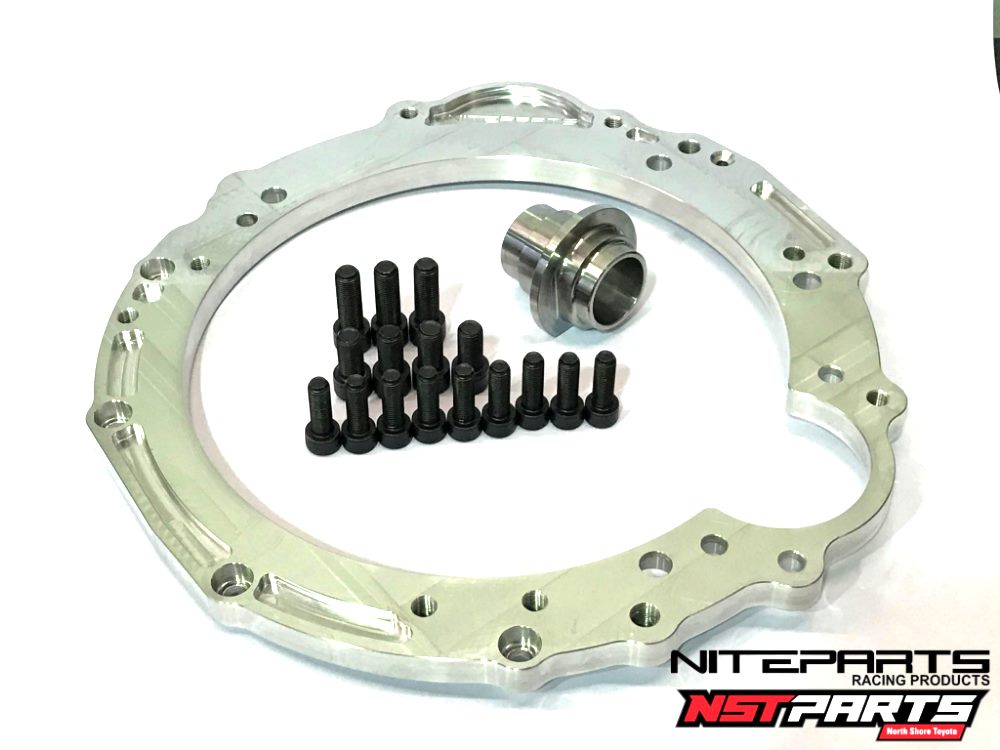

This NITEPARTS kit will include:
- CNC Billet 6000 Series alloy 16mm adaptor plate with 10mm dowels prefitted
- CNC Billet release bearing carrier
- All required hardware
- Fitting instructions

The J160 gearboxes are great for high RPM shifting, much stronger than the T50 and almost as strong as the W series.
We have run one of these boxes in our own 400hp AE86 for years now with no problems.

This kit will suit only the Toyota Altezza SXE10 3SGE version of the J160 gearbox.

This kit allows a RWD 4AGE starter motor can be used but the Altezza starter motor is a better option as it allows for more exhaust clearance.

This kit works in conjunction with the standard Altezza J160 clutch fork, fork pivot, slave cylinder and the existing 4AGE spigot bearing.

Factory 4AGE/7A flywheel and clutch cover assembly with an appropriate clutch disc from Toyota Liteace (dependent on 200-215mm flywheel used) swapped to suit the J160 input spline (common to W and G series gearboxes)
OR
Factory 4AGZE flywheel and clutch (same spline as J160)

This kit will require 14mm machined off the J160 bellhousing but unlike other kits, it retains the OEM spigot location for perfect alignment and strength, keeps the gearbox closer to the engine and less tunnel mods.

Perfect for your RWD 4AGE setup like an AA63 or AE86 etc

NITEPARTS design is specifically developed by here in NZ and produced with quality materials in NZ.
Why NITEPARTS ? Because after more than 16 years of committed service, full backup support and 100% success rate, our bellhousings & adaption systems are demanded by name worldwide.
