ARTEC Performance

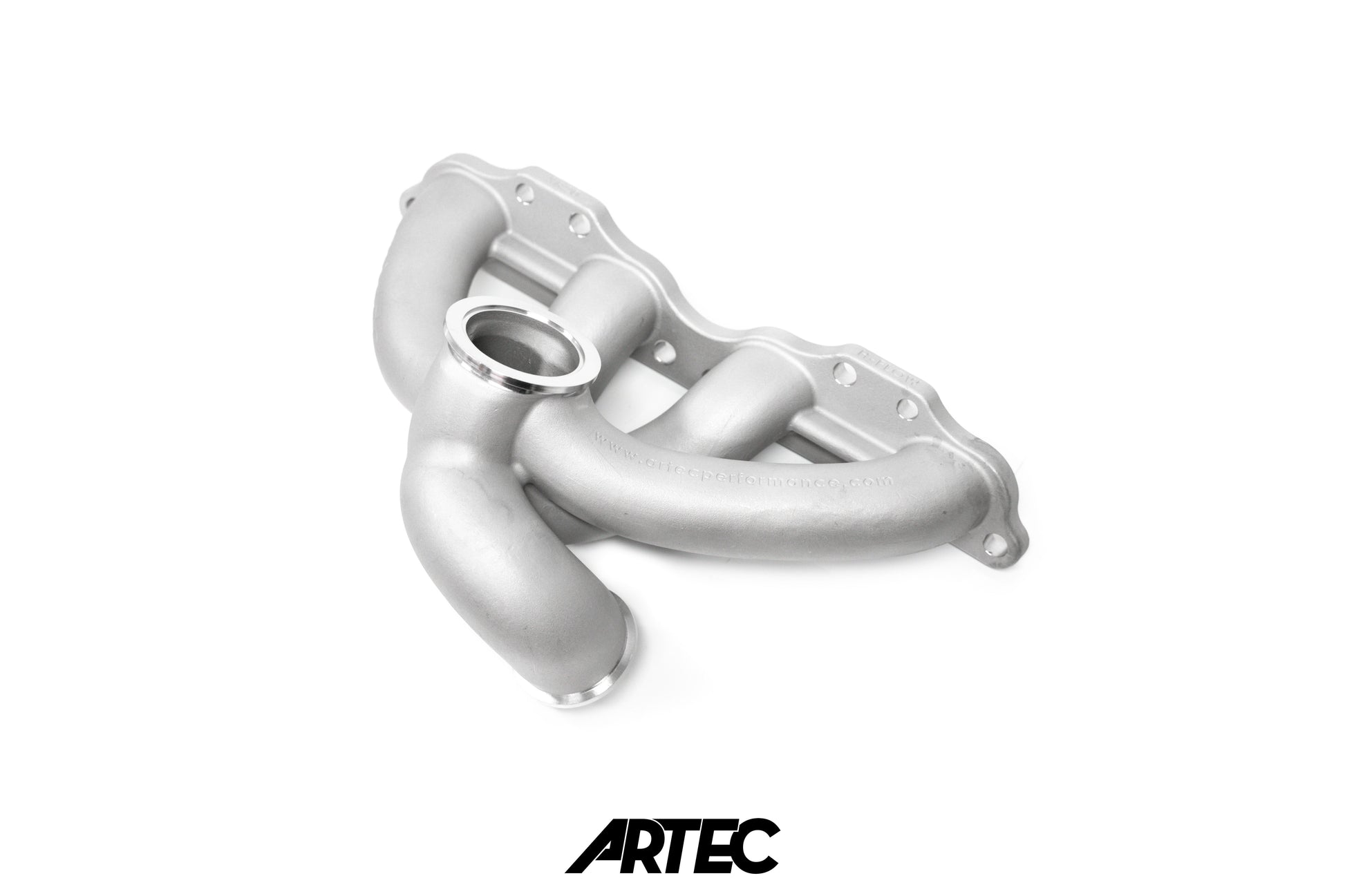

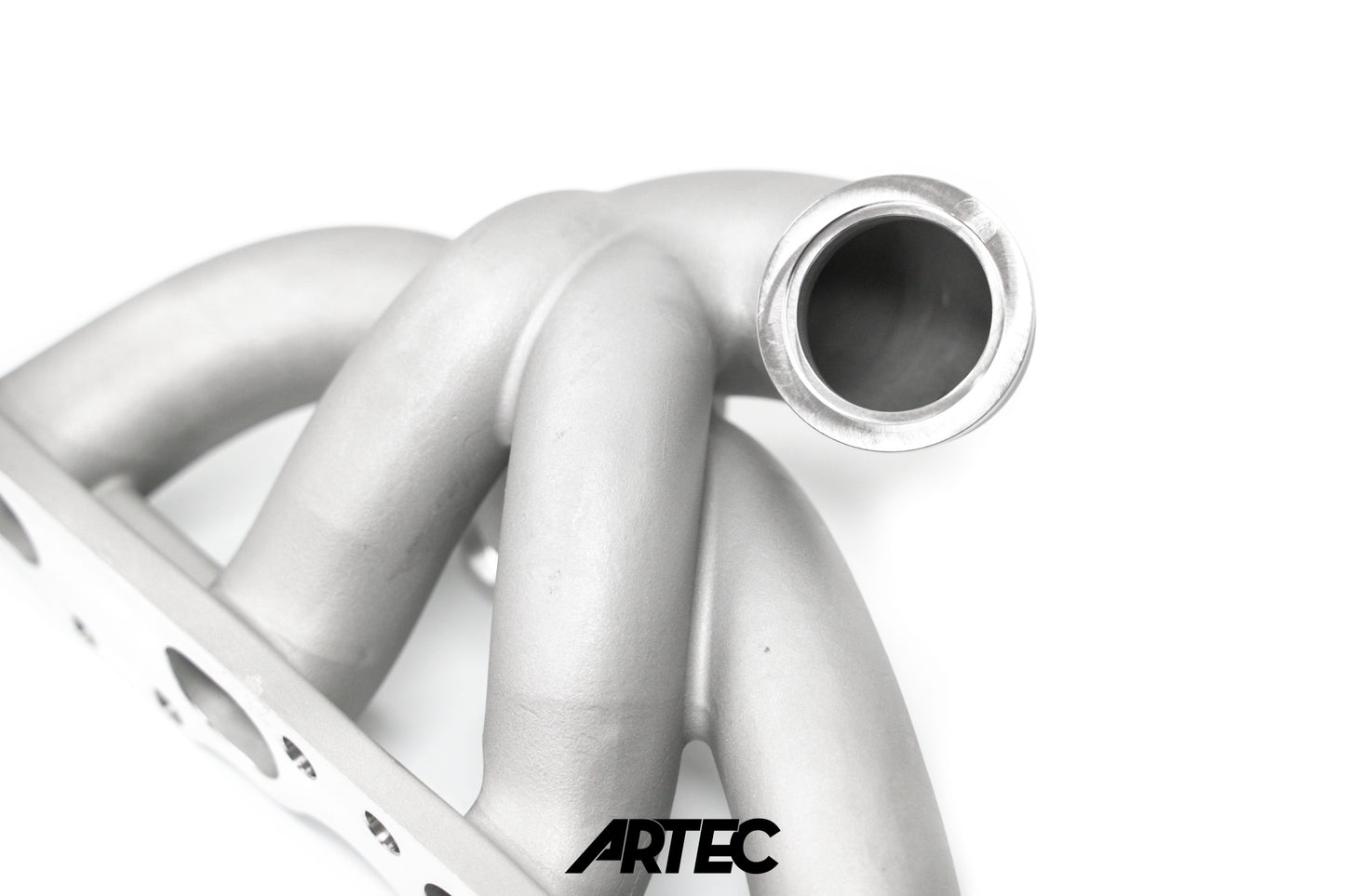

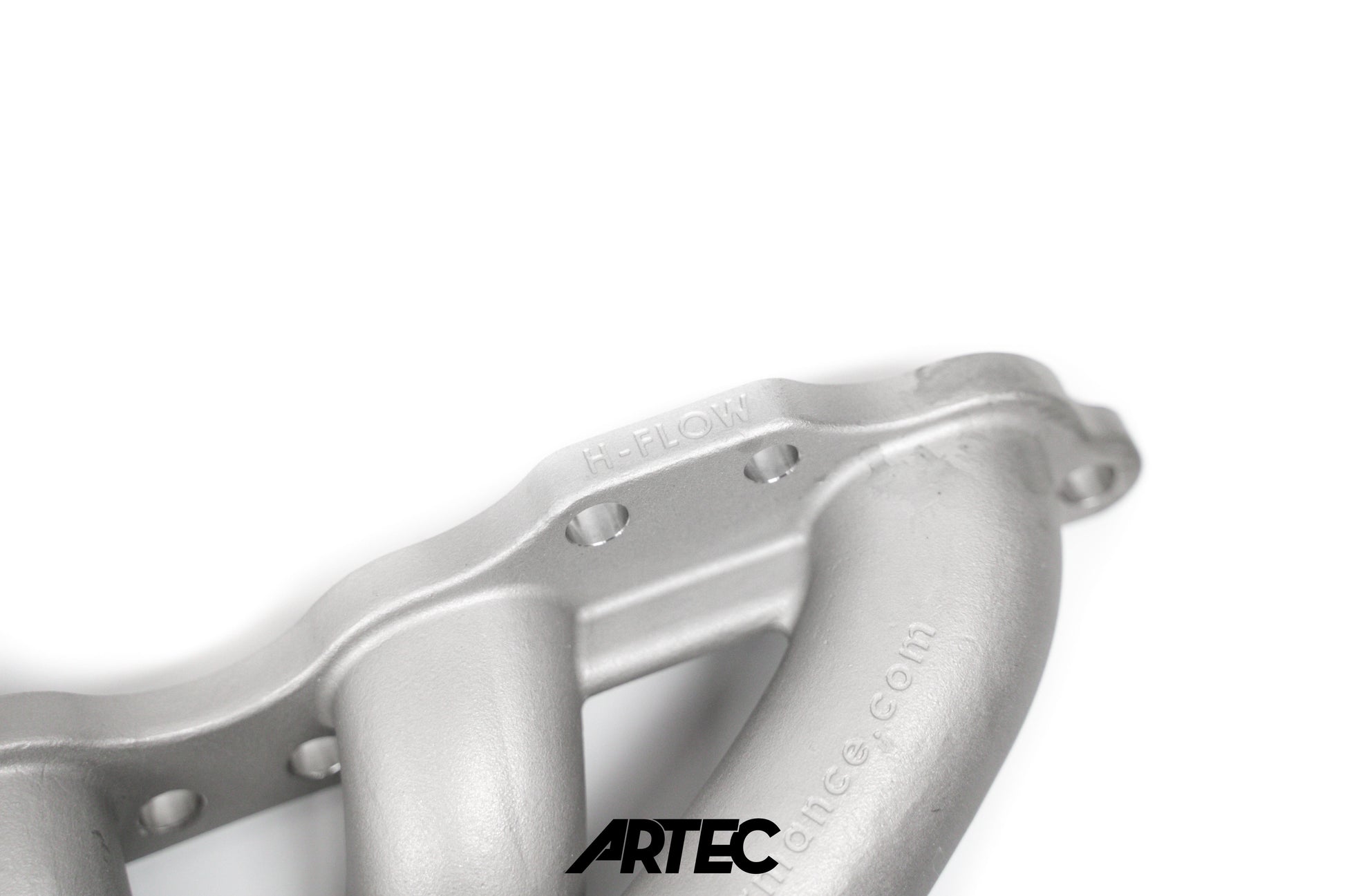

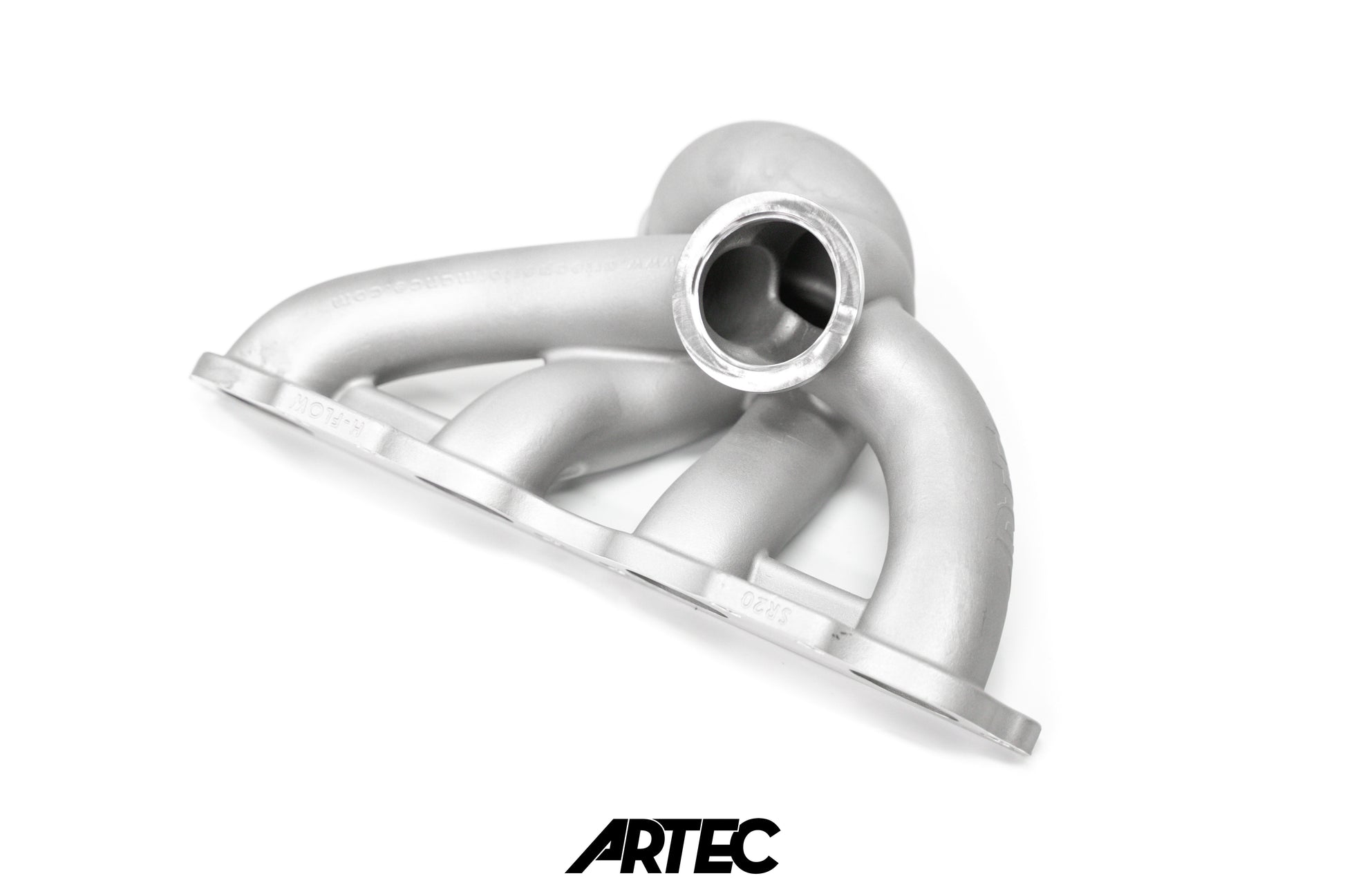

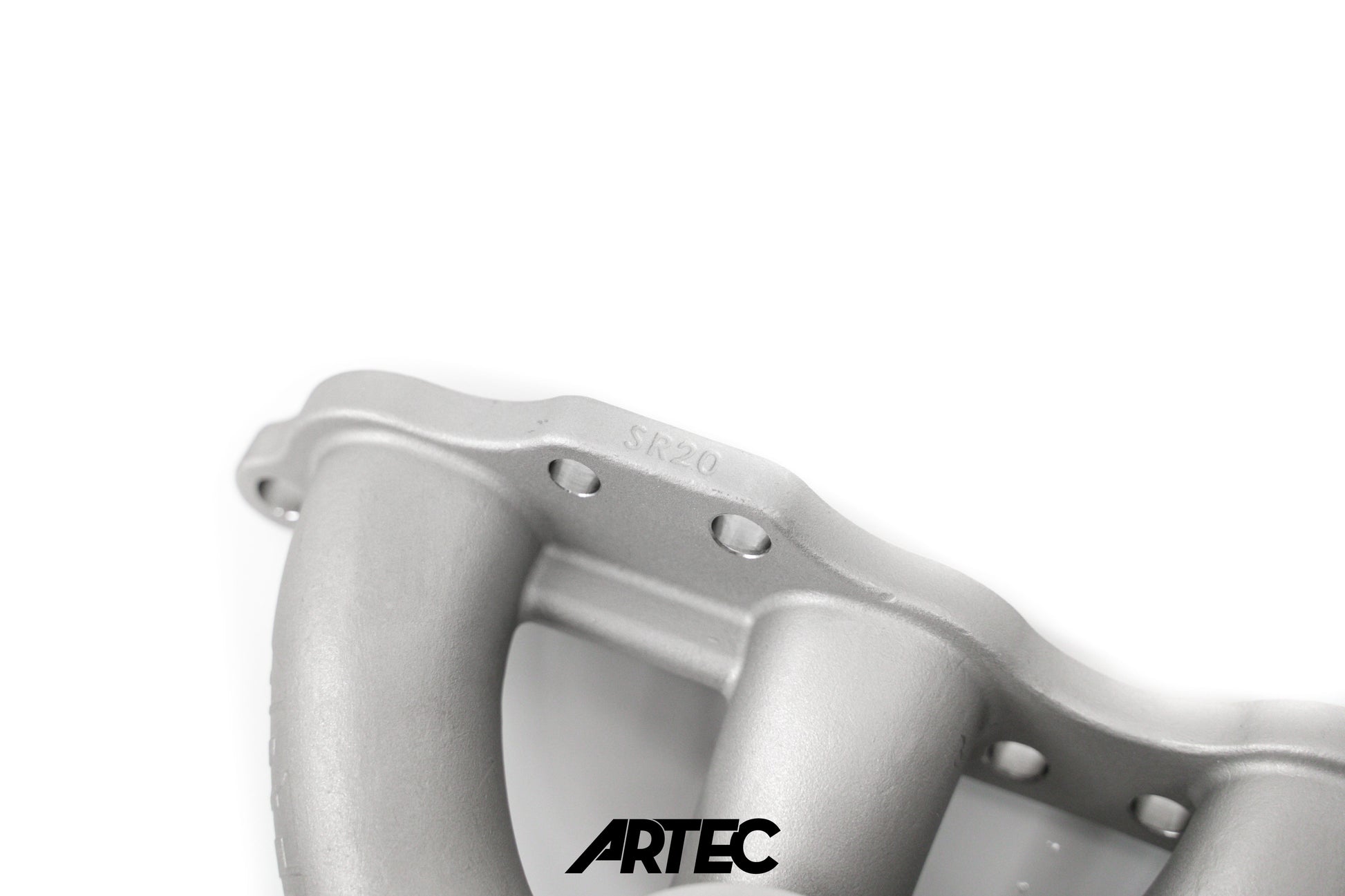

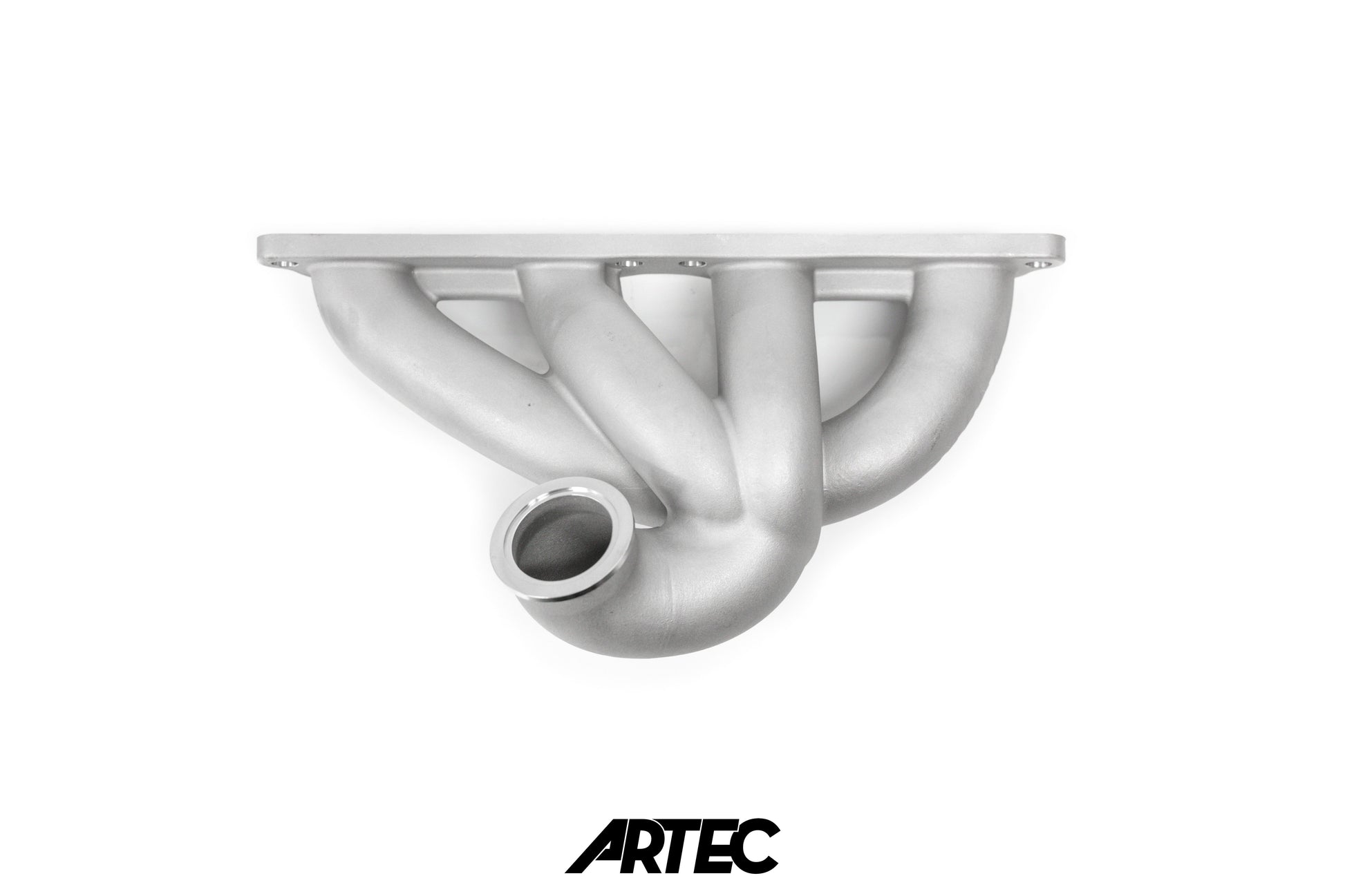

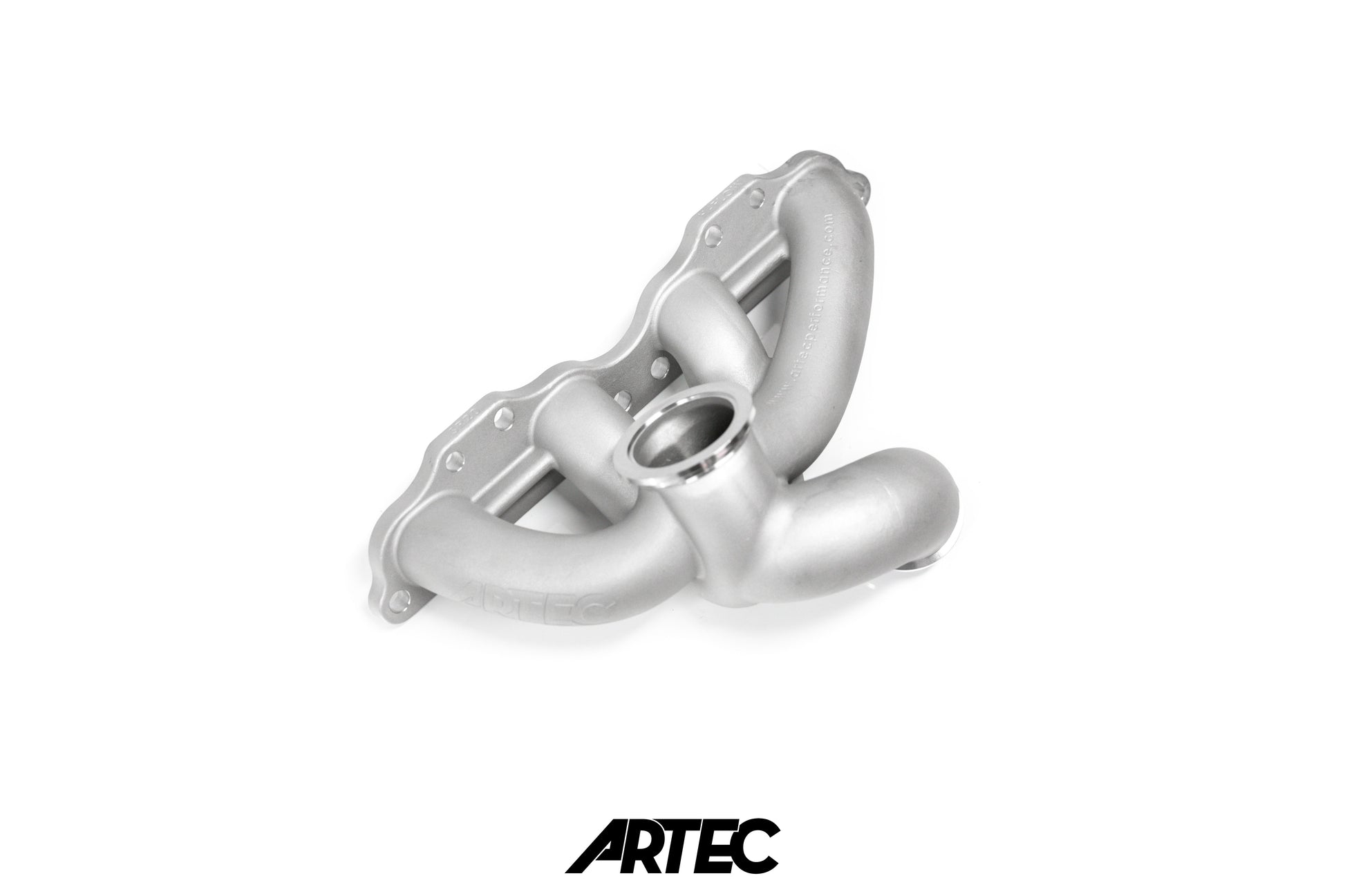

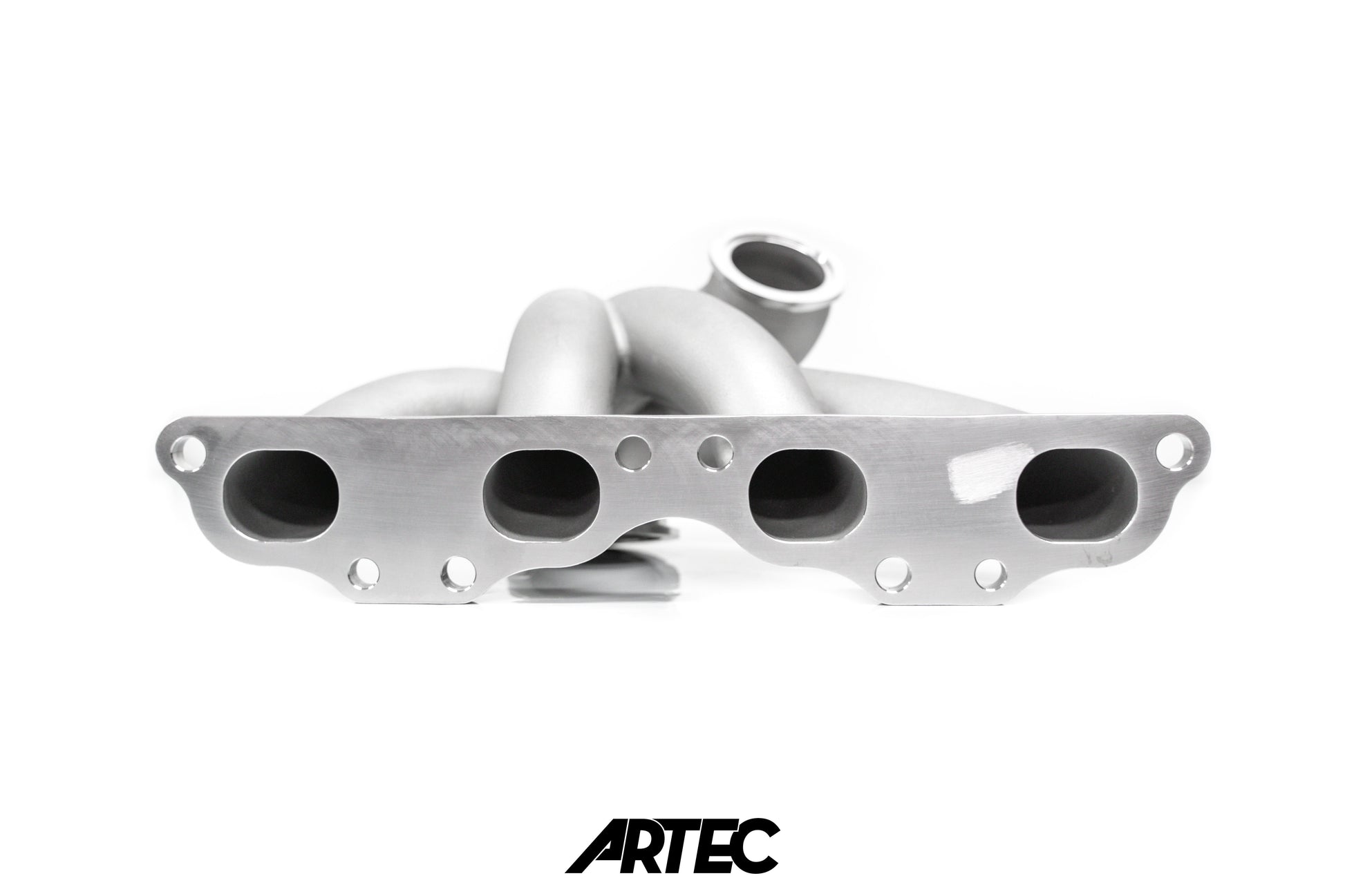

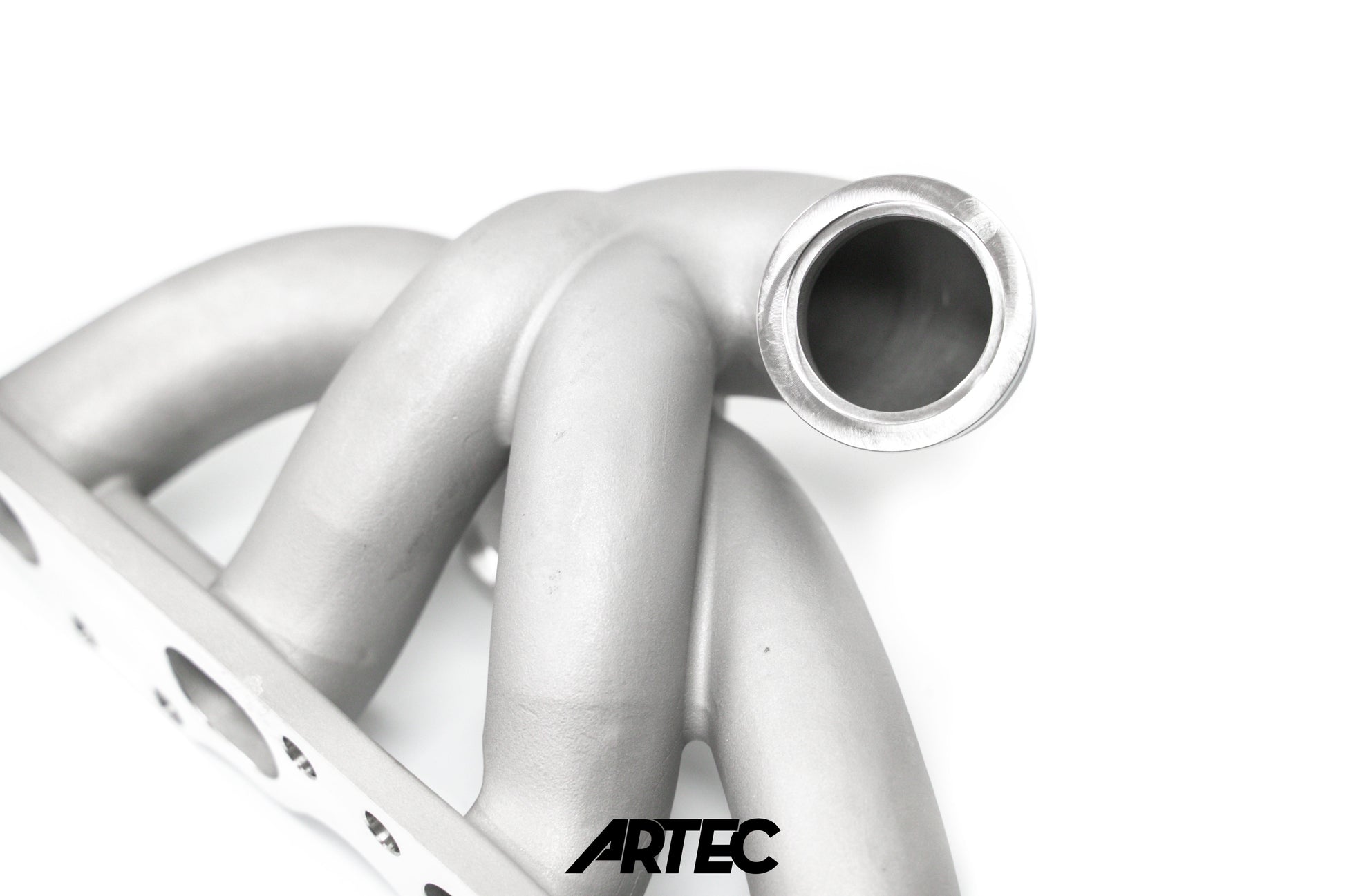

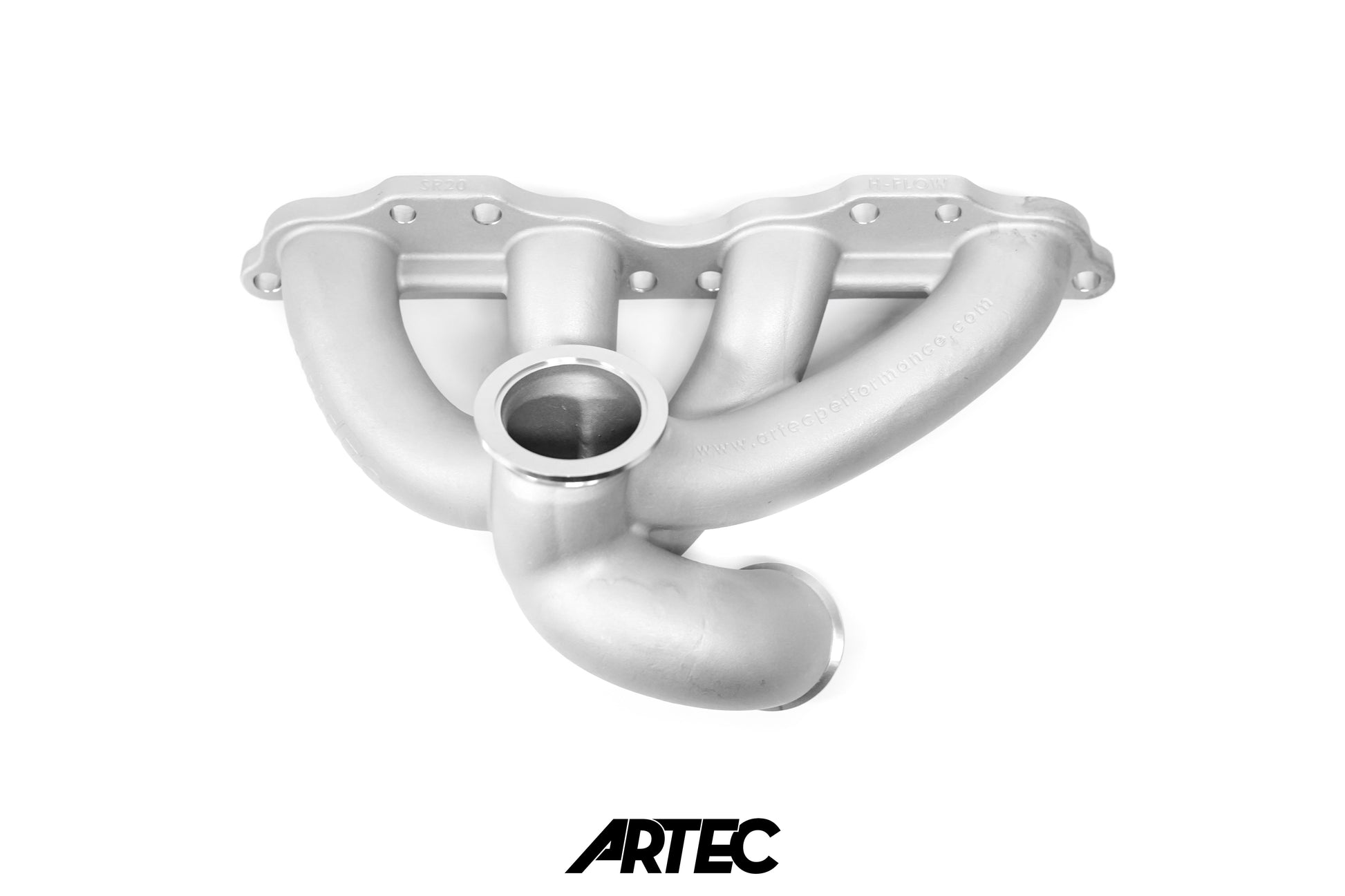

Nissan SR20 High Flow V-Band Exhaust Manifold

Name: Nissan SR20 High Flow V-Band Exhaust Manifold
Brand: ARTEC Performance
SKU: SR20-HF-VBAND-EX
Price: 2221.8 NZD
Availability: InStock

$2,221.80 NZD

Sale Sold out

GST Included

Part Number: SR20-HF-VBAND-EX

Product variants

Quantity

Product Features:

High Flow Manifold Series - designed with larger runners and a larger turbine flange compared to our High Response Series
Developed specifically for:
- Regions without access to ethanol-blended fuels (such as Japan), where optimised flow efficiency is critical
- High-power ethanol applications targeting in excess of 600hp
High Flow 55mm ID turbine flange to suit Garrett, Precision and Turbosmart
Single 44/45/46mm Wastegate Flange Mount with up to 50mm possible positioned to allow for easy routing for a plumb back or vent to air layout
Suits both SR20 DET and VVL heads
Easy routing for oil and water lines

Engine Compatibility

Nissan SR20DET
Nissan SR20DE
Nissan SR20VET (VVL)
Nissan SR20VE (VVL)

Turbocharger Compatibility

The ARTEC High Flow V-Band Ring System allows you to install turbos from all of the big brands without having to chop and change flanges or manifolds!
Features a High Flow 55mm turbo V-band flange and supports the following turbochargers by using the appropriate locating rings:

Garrett G25 to G40 (using the ARTEC G40C Turbine Housing)
Precision 6266 to 6466 & 6870 compact
Turbosmart 6266 to 6870 compact

NOTE: Designed to fit Garrett, Precision and Turbosmart turbochargers, however turbochargers from other manufacturers may fit provided they use the same flange diameters and profiles

Wastegate Compatibility

Features a single 44mm / 45mm / 46mm wastegate flange. Tested and proven at 40+ psi with nitrous, maintaining stable and precise boost control
NOTE: Designed around Turbosmart 45mm wastegate actuator, however wastegate actuators from other manufacturers may fit provided they use the same flange diameters and profiles

Chassis Compatibility

Designed to fit standard Nissan Silvia S-Chassis
Confirmed fitment with factory ABS and power steering:
- Nissan S13
- Nissan S14
- Nissan S15
- Nissan 180SX
Please refer to the ARTEC Installation Gallery for possible fitment in other chassis

Package Contents:

1x Nissan SR20 High Flow V-Band Exhaust Manifold
1x ARTEC 55mm V-Band Locating Ring for Garrett / Turbosmart
1x ARTEC 55mm V-Band Locating Ring for Precision Turbo

Specifications:

Material: SUS347 Stainless Steel
Weight: 5kg

Notes:

Designed in Australia with Lifetime Warranty*
