Product Features

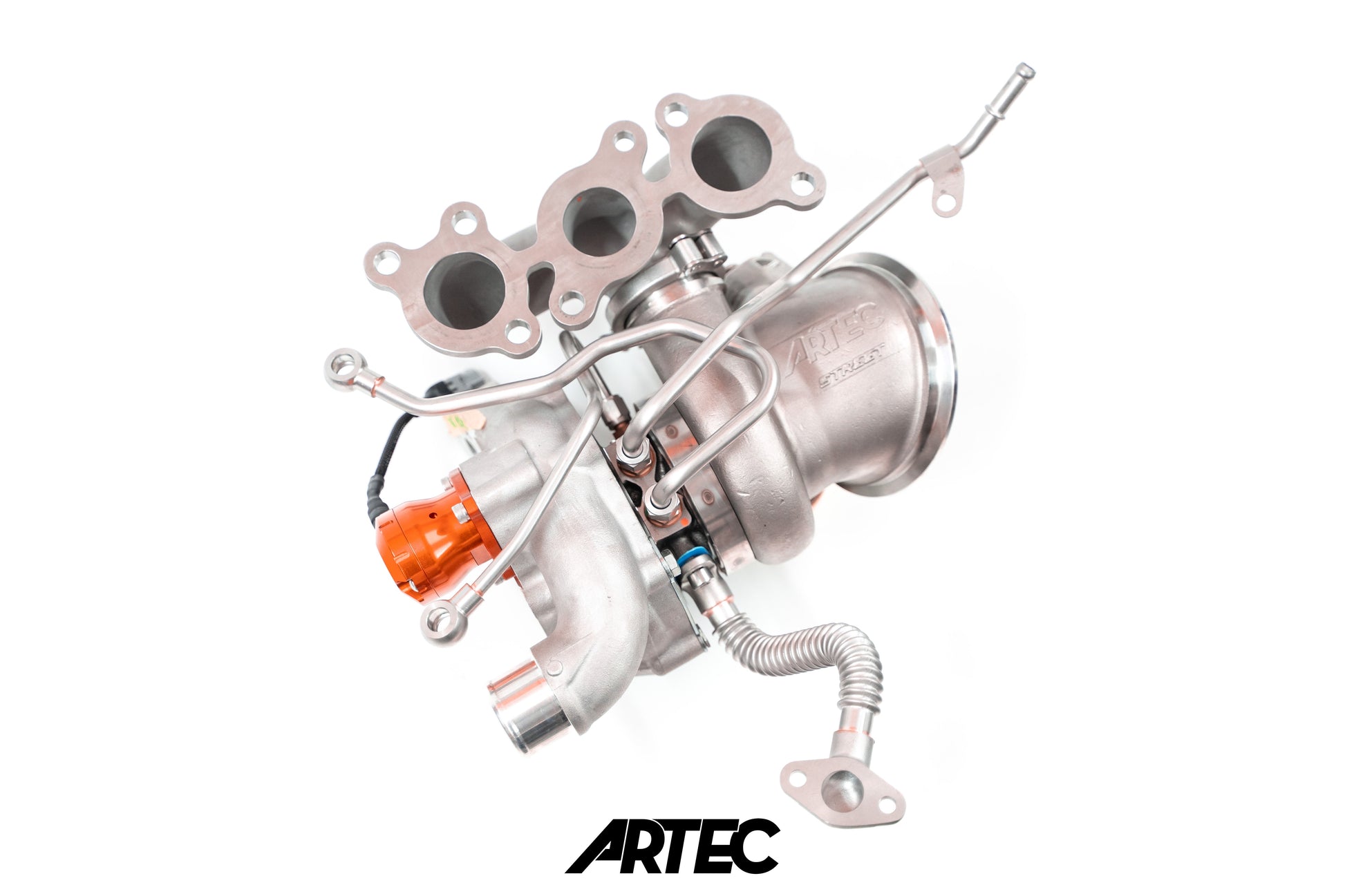

• Original design by ARTEC Performance equipped with a genuine Garrett Motion G25-550 rotating assembly:
  • ARTEC design compressor cover including wastegate actuator, compatible with all factory / factory position air intakes and intercooler piping
  • ARTEC design turbine housing compatible with all factory / factory position exhaust systems
• Turbosmart x ARTEC Edition EM Series Blow Off Valve - direct plug-and-play
• Compatible with OEM ECU tuned with ECUtek software or similar
• Designed for use with regular pump fuel, maintaining close-to OEM turbo response
• Rated for 400 wheel horsepower at up to 32 psi
• Complete kit including oil and water lines for a true bolt-on solution

Engine Compatibility

• All Toyota G16E-GTS:
  • 2020+ Toyota GR Yaris
  • 2023+ Toyota GR Corolla
  • 2024+ Lexus LBX Morizo RR

Dyno Performance Figures (as shown)

• Dyno figures show a GR Corolla that has been independently built, tuned and tested by Kanoo Performance in Kuwait
• RED line - shows a stock GR Corolla making 250hp @ 5800rpm
• GREEN line - 51% gain in HP at peak RPM over stock - shows the same GR Corolla fitted with an Eventuri Air Intake, Kelford Stage 1 Cams and Valve Springs, Kanoo Performance Down Pipe and Mid Pipe, Cat Back Exhaust Upgrade, Deatsch Werks Upgraded Fuel Injectors, and tuned on pump fuel using ECUtek software - making 321hp @ 6300rpmm, 1.65 bar / 24 psi
• BLUE line - 95% gain in HP at peak RPM over stock - shows the same GR Corolla fitted with the modifications above, along with the ARTEC Sport 400 bolt on turbo and tuned on 109 octane fuel - making 412hp @ 7200rpm, 1.9 bar / 27.5 psi

Important Notes

• ECU tuning is required after installation
• Proper tuning must be performed by your chosen workshop to suit local conditions and fuel types
• All units are assembled and shipped from Sydney, Australia

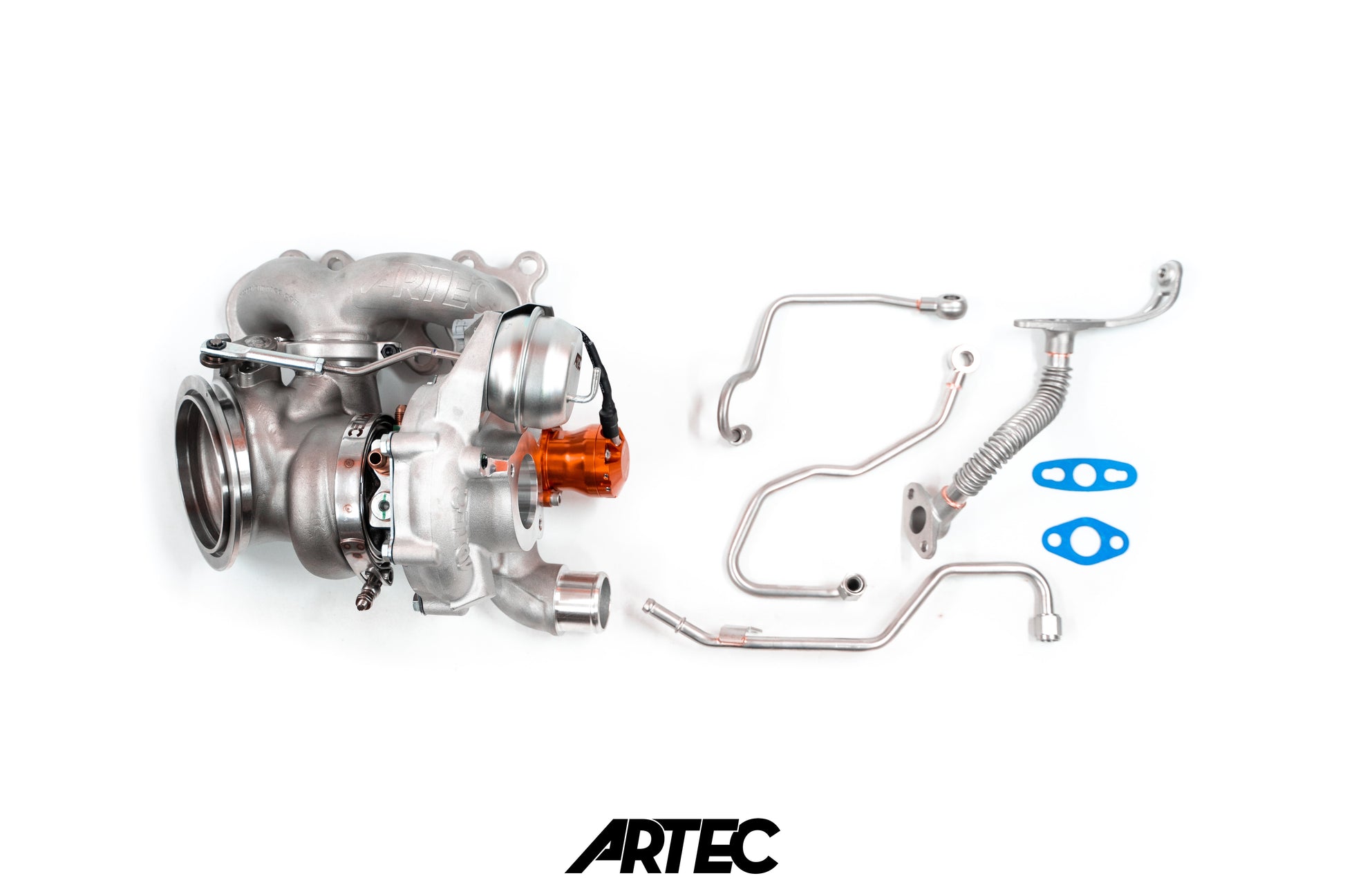

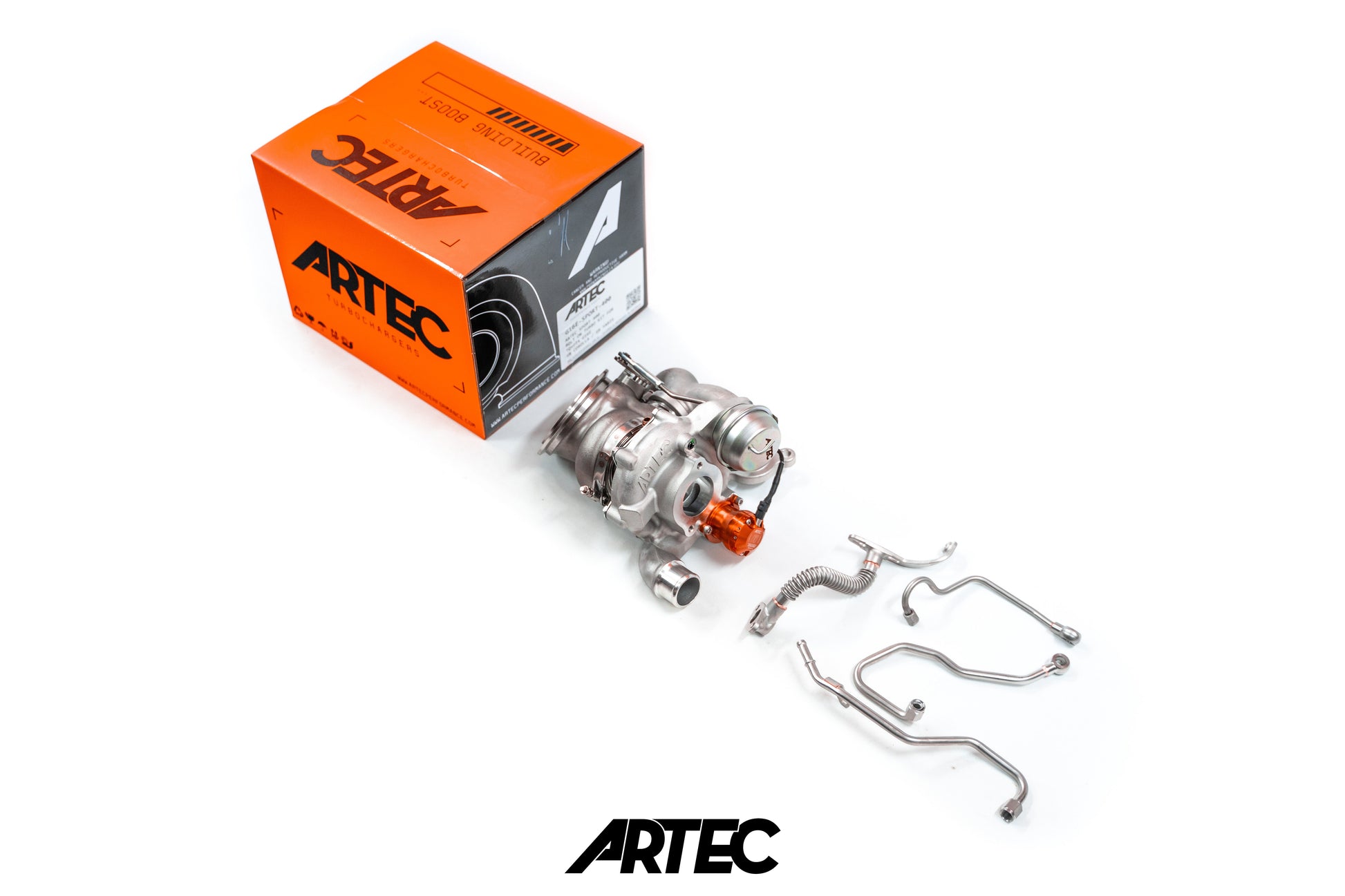

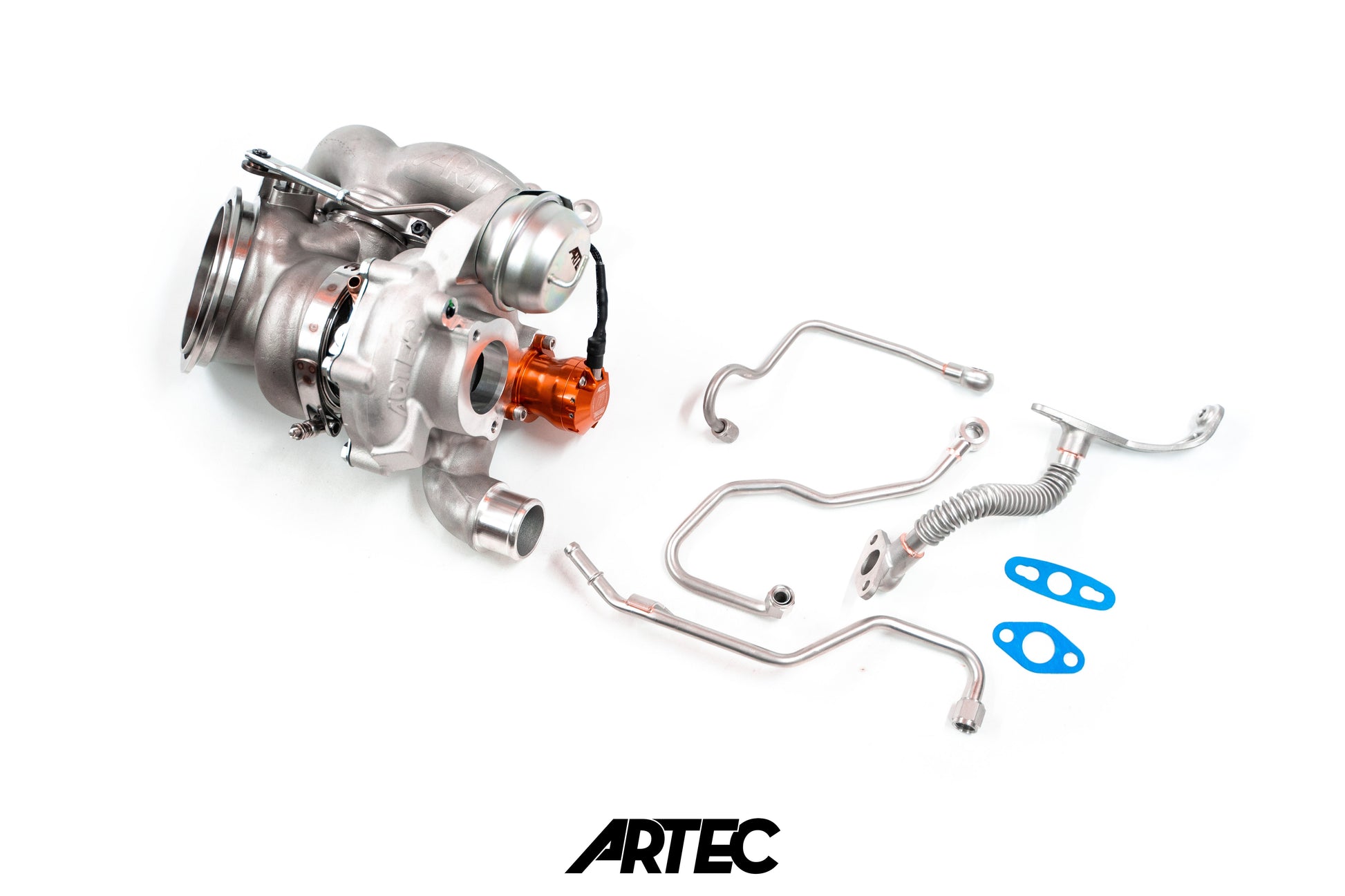

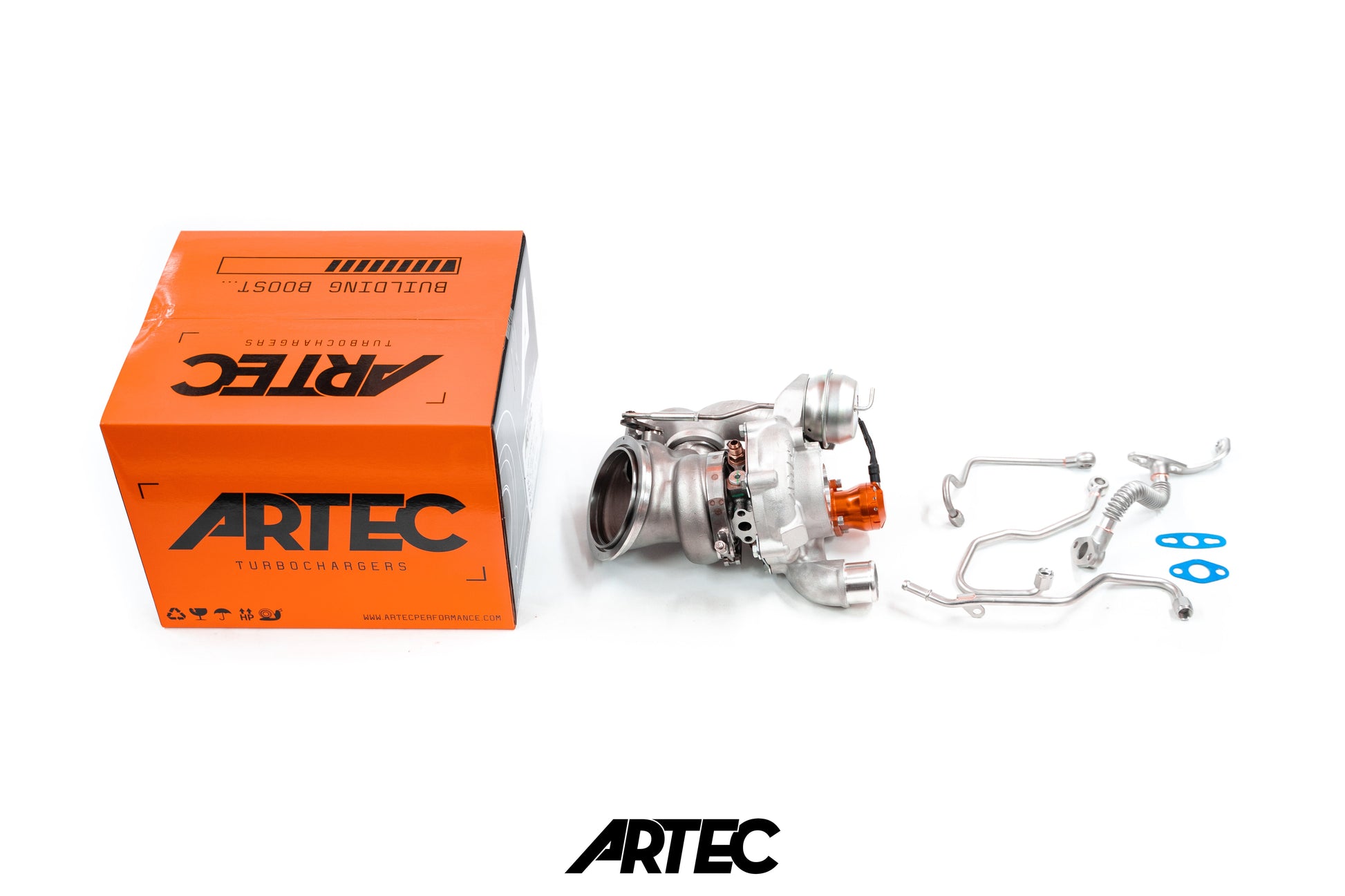

Package Contents

• 1x ARTEC Sport 400 Bolt-on Turbo Kit for Toyota G16E

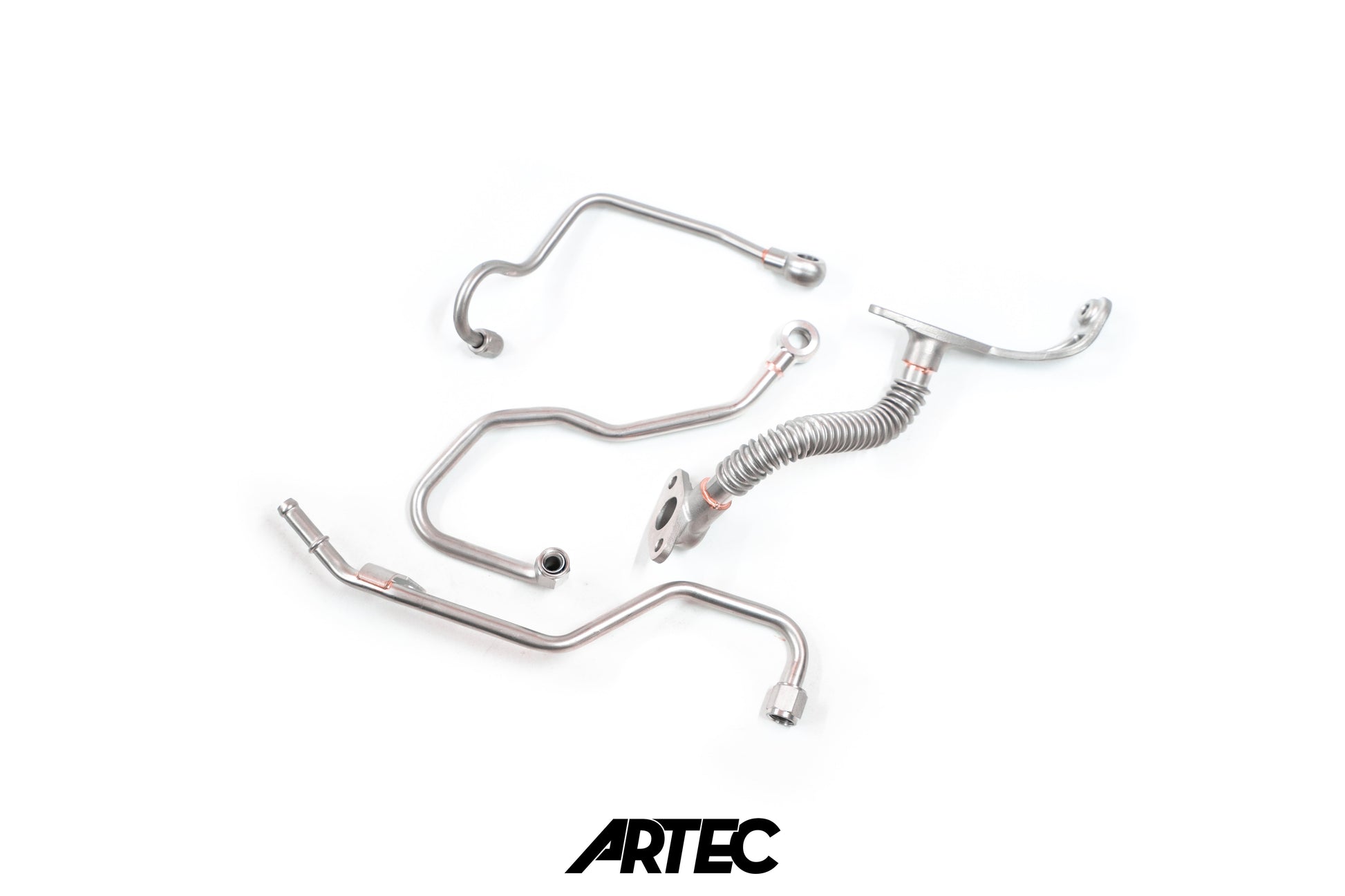

• 1x ARTEC Turbo Oil Outlet Drain Pipe for Toyota G16E
• 1x ARTEC Turbo Oil Feed Pipe for Toyota G16E
• 1x ARTEC Turbo Water Outlet and Feed Pipe Set for Toyota G16E
• 1x Turbine Outlet to Dump Gasket.
• 1x ARTEC Accessories Box
