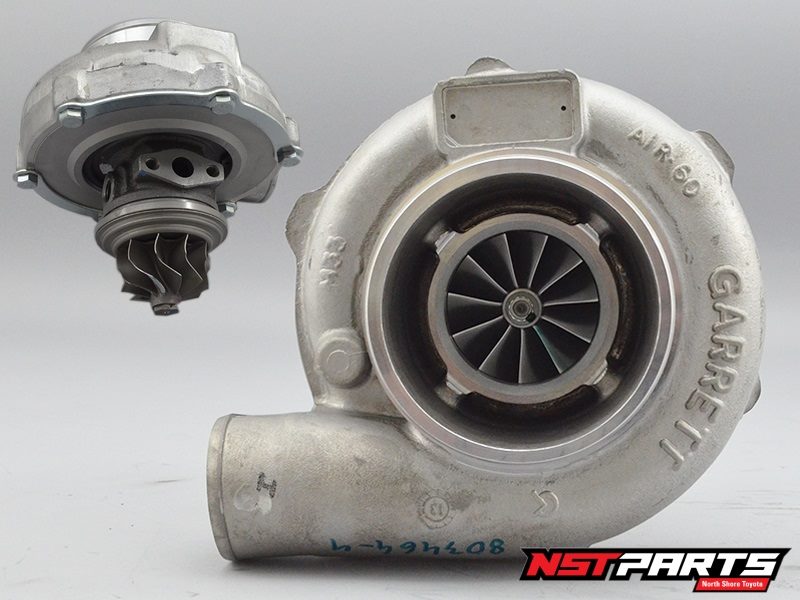

Garrett GTX2871R Core and Cover Only

Garrett GTX2871R Core and Cover Only

$2,175.68 NZD
$2,175.68 NZD
Sale Sold out

GST Included

Part Number: 836040-5005S

This is for the core and compressor cover only

Great upgrade for your GT2871R turbo and will bolt straight onto your existing turbine housing and fit your existing water and oil lines.

The next step in the evolution of the turbocharger is here! Garrett® GTX-R Turbos feature all new compressor wheels with next generation aerodynamics and improved efficiency to deliver wicked performance!
Garrett® GTX-R Turbochargers provide higher flow and greater boost pressure ratios beyond the world-class Garrett GT Series compressor wheels

10%+ Gain in flow over traditional GT compressor wheel designs
10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
Forged, fully machined wheels (billet) for expedited release
11 Full-blade design for improved efficiency and ultra quiet operation
Outline interchangeable with Garrett® GT Series turbos

Bearing Type: Ball Bearing
Cooling System: Oil & Water Cooled
Horsepower: 340-560hp
Displacement: 1.8L - 3.0L

Compressor Specs
Inducer 54.1mm
Exducer 71.4mm
Trim - 58 / 58T
A/R - 0.60

Turbine Specs
Whl Dia(mm) - 53.90
Trim - 76 / 76T
