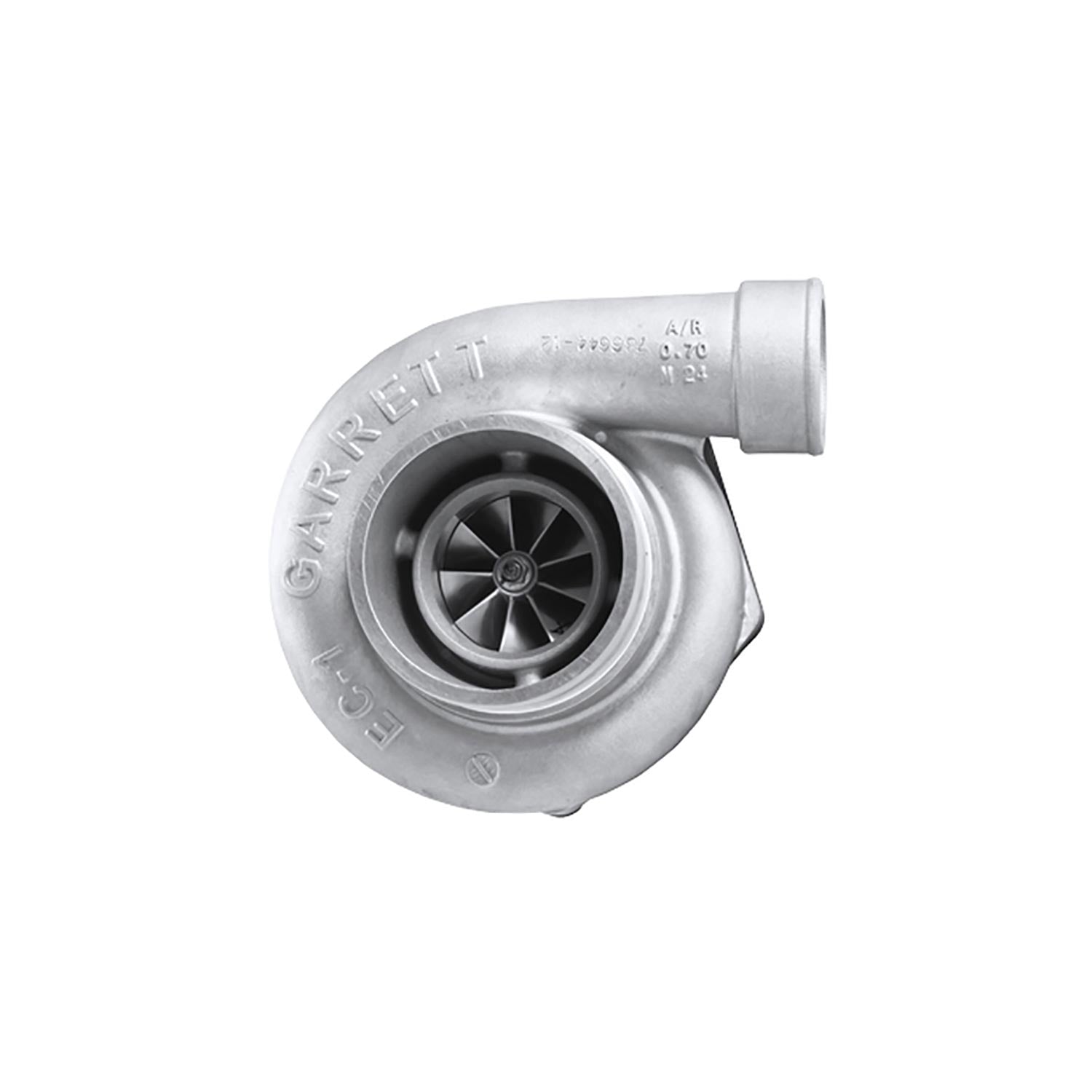

Garrett GTW3684R Ball-Bearing Core and Cover Only / Supercore 54T

Garrett GTW3684R Ball-Bearing Core and Cover Only / Supercore 54T

Regular price $1,850.35 NZD
Regular price Sale price $1,850.35 NZD
Sale Sold out

GST Included

Part Number: 841691-5002S

Turbo Family: GTW3684R
Compressor Inducer: 62mm
Compressor Exducer: 84mm
Compressor Spec: 54T
Turbine Inducer: 71mm
Turbine Exducer: 62mm
Turbine Spec: 76T "Stage 5"
Compressor A/R: .70
Turbine A/R: Sold with out turbine housing
Bearing Type: Ball Bearing
Bearing Cooling: Water

Flange Details:
Compressor Inlet Flange: 4.0" Hose
Compressor Outlet Flange: 2.5" Hose

Wastegate:
Wastegate Type: External

Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 2.0 to 5.3 Litre
Expected Power Output: 450 to 700 HP - 335 to 520 kw
