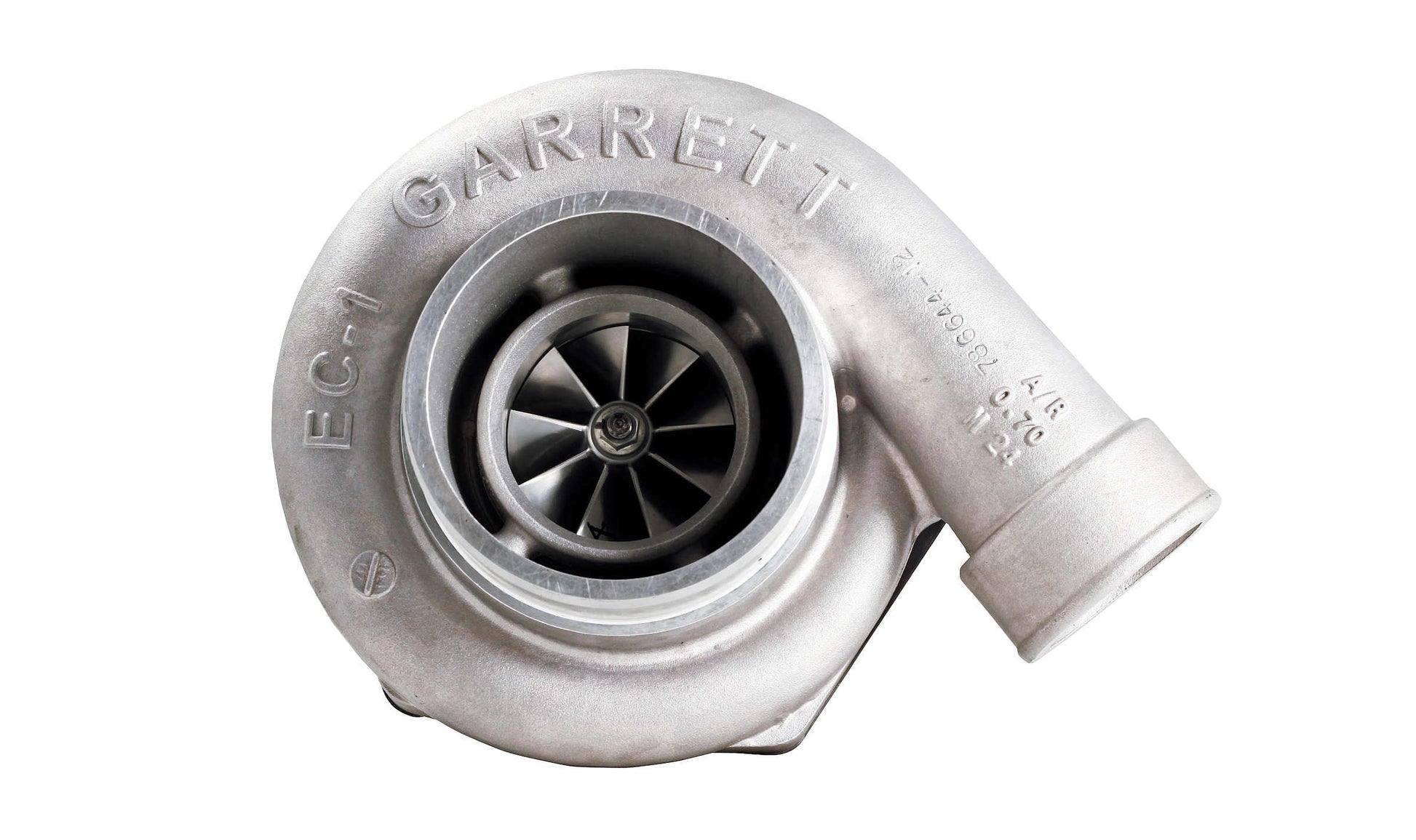

Garrett GTW3684 Journal-Bearing Super Core Assembly 54T

Turbo Family: GTW3684
Compressor Inducer: 62mm
Compressor Exducer: 84mm
Compressor Spec: 54T
Turbine Inducer: 71mm
Turbine Exducer: 62mm
Turbine Spec: 76T "Stage 5"
Compressor A/R: .70
Turbine A/R: Sold with out turbine housing
Bearing Type: Journal Bearing
Bearing Cooling: Oil

Flange Details:
Compressor Inlet Flange: 4.0" Hose
Compressor Outlet Flange: 2.5" Hose

Wastegate:
Wastegate Type: External

Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 2.0 to 5.3 Litre
Expected Power Output: 450 to 700 HP : 335 to 520 kw
