GARRETT

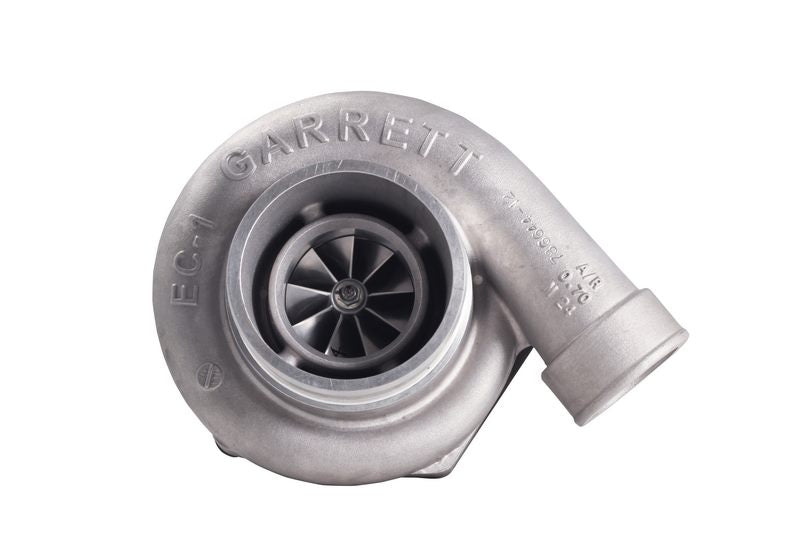

Garrett GTW3476R Ball-Bearing Super Core Assembly 58T

Garrett GTW3476R Ball-Bearing Super Core Assembly 58T

Regular price $2,121.17 NZD
Regular price $1,551.33 NZD Sale price $2,121.17 NZD
Sale Sold out

GST Included

Part Number: 841691-5001S

Turbo Family: GTW3476R
Compressor Inducer: 58mm
Compressor Exducer: 76mm
Compressor Spec: 58T
Turbine Inducer: 65mm
Turbine Exducer: 56.5mm
Turbine Spec: 76T Stage 3
Compressor A/R: .70
Turbine A/R: Sold with out turbine housing
Bearing Type: Ball Bearing
Bearing Cooling: Water

Flange Details:
Compressor Inlet Flange: 4.0" Hose
Compressor Outlet Flange: 2.5" Hose

Wastegate:
Wastegate Type: External

Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 2.0 to 4.5 Litre
Expected Power Output: 450 to 700 HP - 335 to 520 kw

Shipping & Returns

All orders are subject to stock availability. We do our best to maintain accurate stock counts, but every now and then there may be a stock discrepancy and we won’t be able to fulfil your order fully. In this instance, we will make contact and give you options. These options will include; waiting for the item to arrive into stock, or to have a refund on that part in question.

Our shipping costs are calculated per item, by weight, dimension and the destination in which they’re being delivered too. At the time of payment, shipping will be added to your order unless you choose to collect your item in store.

International orders might be subjected to Import Customs Duty. The responsibility of paying this fee, if applicable, lies with the recipient.

In the event of goods being returned due to a change of mind, the recipient may incur a re-stocking fee.
