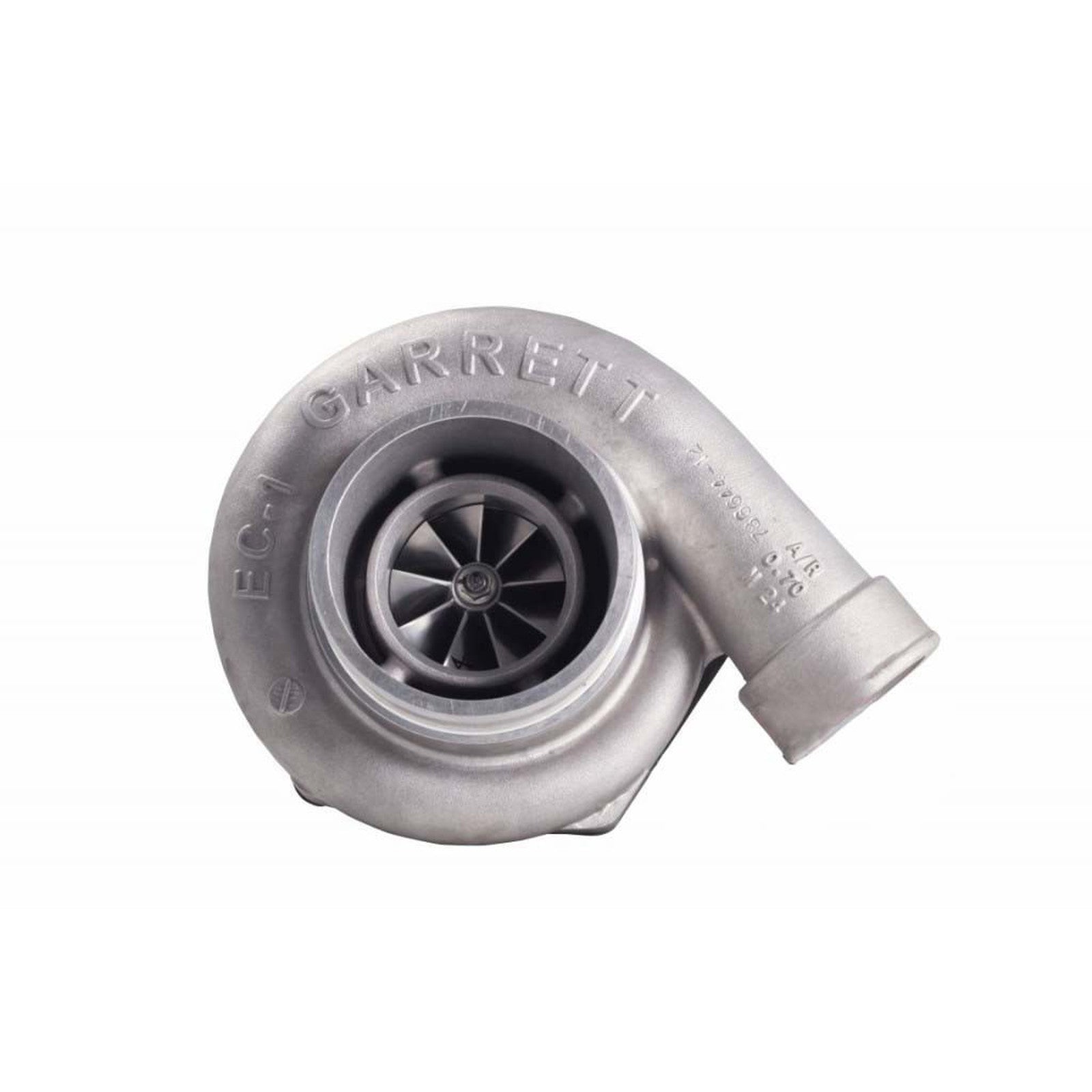

Garrett GTW3476 Journal-Bearing Super Core Assembly 58T

Garrett GTW3476 Journal-Bearing Super Core Assembly 58T

Regular price $1,279.95 NZD
Regular price Sale price $1,279.95 NZD
Sale Sold out

GST Included

Part Number: 841297-5001S

Turbo Family: GTW3476
Compressor Inducer: 58mm
Compressor Exducer: 76mm
Compressor Spec: 58T
Turbine Inducer: 65mm
Turbine Exducer: 56.5mm
Turbine Spec: 76T Stage 3
Compressor A/R: .70
Turbine A/R: Sold with out turbine housing
Bearing Type: Journal Bearing
Bearing Cooling: Oil

Flange Details:
Compressor Inlet Flange: 4.0" Hose
Compressor Outlet Flange: 2.5" Hose
Wastegate:
Wastegate Type: External

Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 2.0 to 4.5 Litre
Expected Power Output: 450 to 700 HP : 335 to 520 kw
