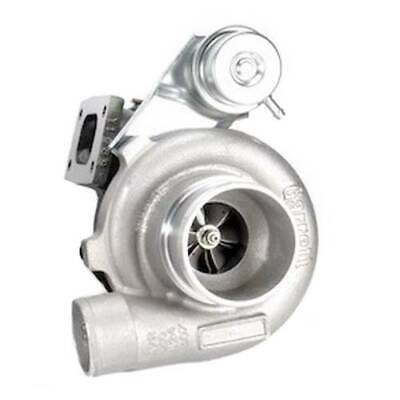

Garrett GT2871R Turbocharger (48 Trim) / 0.64AR T25 T28

Bearing Type: Ball Bearing Cooling System:Oil & Water Cooled Actuator Pressure: Standard 12psi with upgrade options Horsepower: 250-400hp Displacement: 1.8L - 3.0L Previous Part Number: 743347-5001S / 743347-0001

Compressor specs: Inducer - 49.2mm Exducer - 71.0mm Trim - 48 Air ratio - 0.60 AR

Turbine specs: Inducer - 53.9mm Trim - 76 Air Ratio - 0.64AR Wastegate - Internally wastegated / actuator included Base Flange: T2 / T25 / T28 Exhaust Outlet Flange: 5 Bolt CA18DET / SR20DET style

PRODUCT NOTES

• The Turbine Wheel is cast from Inconnel material for extreme applications.
• The GT2871R will bolt directly onto the CA18DET/SR20DET factory exhaust manifold and dump pipe, however, when this turbocharger is supplied, the housing orientation is generic. This means that the compressor housing, turbine housing, and core assembly may need to be rotated to suit the application, and the actuator bracket may need modifying to fit.
• Due to the different style of compressor cover used, some intake and intercooler pipe modifications are required.
• This Turbocharger is a direct bolt on upgrade to the GT2860RS "Disco Potato"
