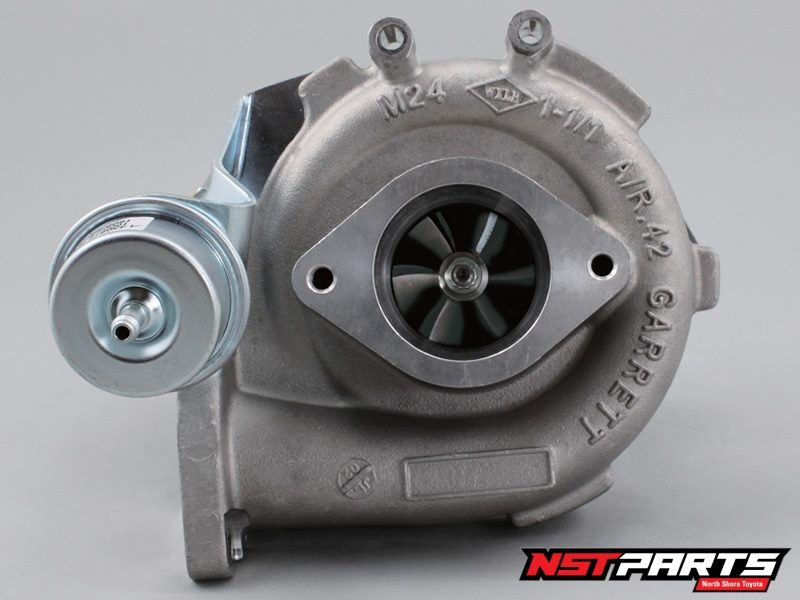

Garrett Bathurst GT2860R Turbos aka GTR 5s
Garrett Bathurst GT2860R Turbos aka GTR 5s
GST Included
Part Number: 836026-5005S
Couldn't load pickup availability
Garrett Bathurst GT2860R Turbos aka GTR 5s
2x required per vehicle. This listing is the price for each.
If not showing in stock, we can get them same day generally. Just ask!
Bearing Type: Ball Bearing.
836026-5005S Cooling System: Oil & Water Cooled.
Turbine Housing: Internally Wastegated 0.64a/r.
Base Flange: T25 Nissan Skyline GTR Specific.
Exhaust Outlet Flange: 5 Bolt Nissan Skyline GTR Specific.
Actuator Pressure: 15.50psi.
Horsepower: 250-360hp each (500-720HP)
Displacement: 1.8L - 3.0L.
PRODUCT NOTES
This Turbocharger is a direct bolt-on replacement for the Nissan Skyline GTR R32 / R33 / R34 RB26DETT.
If you have the R32 or R33, you need to modify the existing turbo oil drain (slotting bolt holes) for bolt in replacement.
R34 no modifications required.
This Turbocharger is the turbocharger that was fitted on the Bathurst Nissan Skyline R32 GTR.
The Turbine Housing is cast from high nickle "Ni-Resist" material.
The Turbine Wheel is cast from Inconnel material for extreme applications.
The Turbine Housing has a unique compact 5 bolt pattern, that is not interchangeable with the traditional 5 bolt CA18DET / SR20DET pattern.
BNR32 BCNR33 BNR34 RB26
