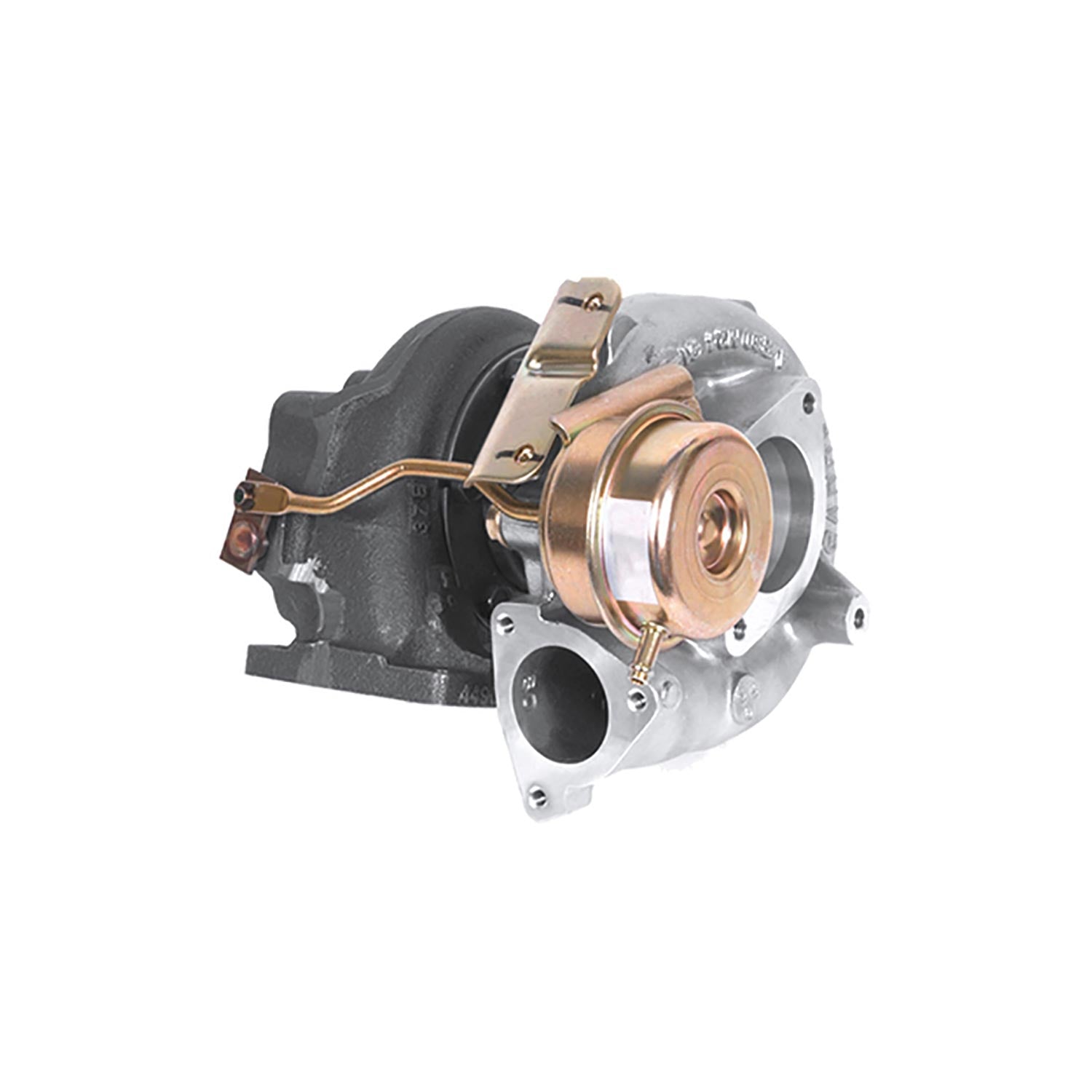

Garrett GT2560R Ball-Bearing Turbocharger Nissan S15

Turbo Family: TB25
Turbine Inducer: 53mm
Turbine Exducer: 41.7mm
Compressor Inducer: 46.5mm
Compressor Exducer: 60.1mm
Compressor A/R: .60
Turbine A/R: .64
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water

Flange Details:
Turbine Inlet Flange: T25
Turbine Outlet Flange: 5-Bolt Nissan T25
Compressor Inlet Flange: 2-bolt
Compressor Outlet Flange: 3-bolt

Wastegate:
Wastegate Type: Internal (actuator supplied)

Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 1.6 to 2.5 Litre
Expected Power Output: 200 to 330 HP : 149 to 246 kw

Where Used:
Factory Installed On: Nissan S15 Silvia (SR20DET)
