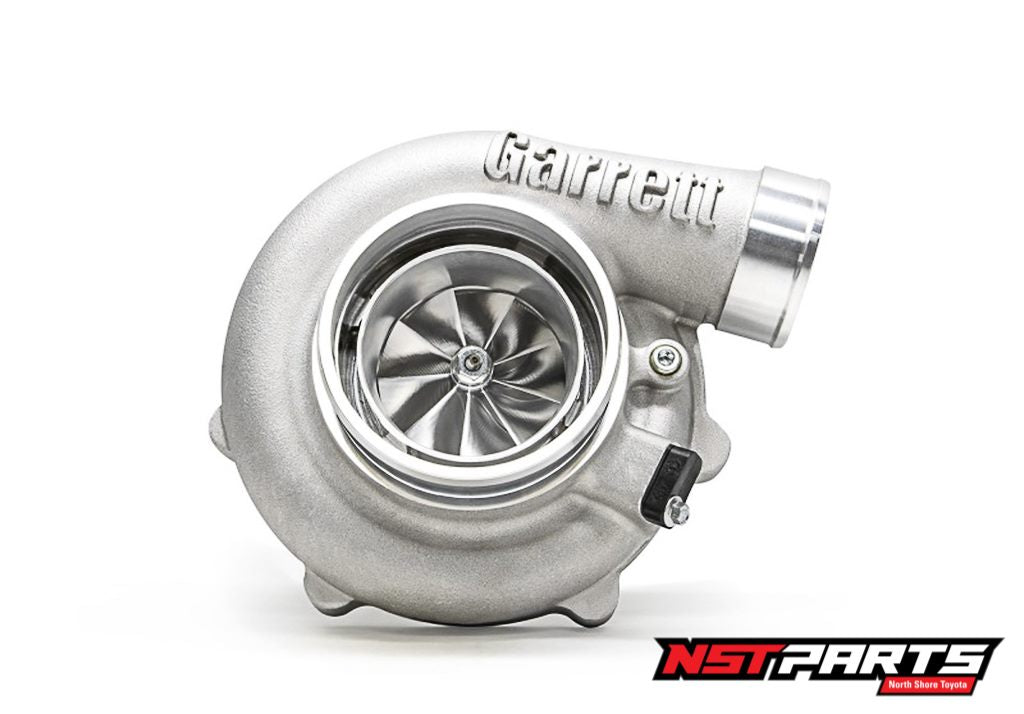

Garrett G30-770 SuperCore / Core and Cover Only

Turbo Family: G30-770
Compressor Inducer: 58mm
Compressor Exducer: 71mm
Compressor Spec: 65T
Turbine Inducer: 60mm
Turbine Exducer: 55mm
Turbine Spec: 84T
Compressor A/R: .72
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water

Flange Details:
Compressor Inlet Flange: 4.0" Hose
Compressor Outlet Flange: 2.0" Hose

Turbo Characteristics:
Turbo Size: Small frame
Intended Application: Low to Medium power
Suits Engine Size: 1.4 to 3 Litre
Expected Power Output: 475 to 770 HP : 355 to 575 kw
