Exedy 250mm 10" Heavy Duty Sprung Full Faced Organic clutch kit / Push Type

he Heavy Duty (HD suffix) clutch kits are perfectly suited for use in lightly modified vehicles or vehicles carrying loads used for daily driving or in amateur motor sports activities.

A high performance clutch cover with increased clamp load which will transmit an increase in engine torque is included in these kits with an organic clutch disc creating a performance clutch kit with smooth take off drivability.

Suits 10" push type flywheels including CNC NITEPARTS and NZAD D1Racing flywheels as commonly used in these engines: 1JZ 1JZGE 1JZGTE 2JZ 2JZGE 2JZGTE 1UZ 1UZFE 3UZ 3UZFE

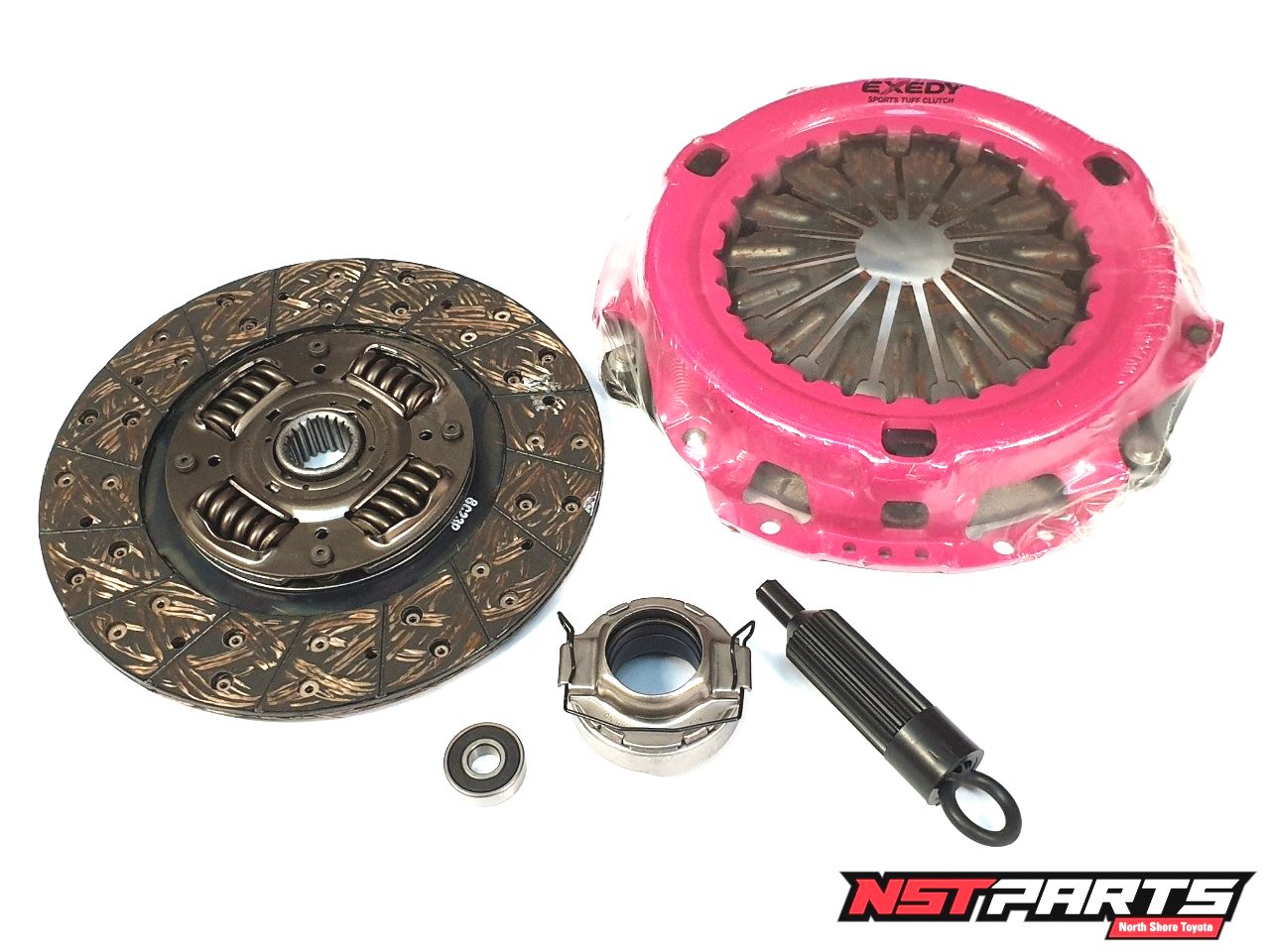

Includes: Release bearing (to suit W58 style fork, 70mm OD / 35mm ID / 45mm Height) Input shaft spigot bearing (32mm OD / 12mm ID / 10mm width) Clutch alignment tool (21 teeth / 28.6 mm Spline / 11.9mm Spigot ID)

Also suits: Toyota Dyna / ToyoAce 3RZFE RZU100

Toyota Hilux / Hilux Surf 3RZFE RZN149 RZN154 RZN169 RZN174 RZN185

Toyota LandCruiser Prado 3RZFE RZJ120 RZJ95

Specifications Flywheel Profile 0.5mm Size 250mm Spline OD 29.8mm No. of Teeth 21 Teeth Spigot Included in Kit Alignment Tool Included in Kit

TYK-6779HD
