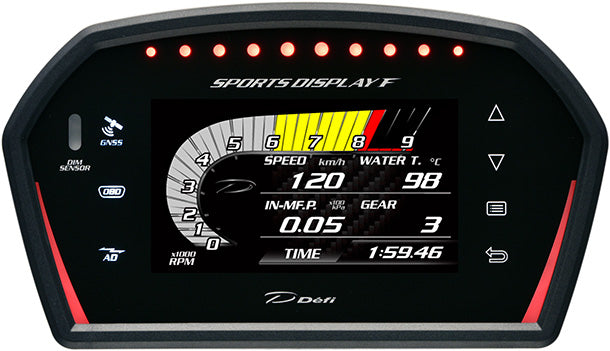

Defi Sports Display F - Display Only

*Note: This listing for display only. Defi Control Unit/Sensors are not included*

New from Defi is their new Sports Display Dash!

The Defi Sports Display F (DSDF) displays data obtained from Defi ADVANCE system, CAN OBDII connector, and GNSS (Global Navigation Satellite System including GPS). In addition, driving data can be recorded, replayed, and analyzed by connecting a USB flash drive (commercially available separately).

Main Features and functions:

• 4.2inches touch panel TFT color LCD, a dim sensor, and a low reflection glass enhances the operatability and the readability.
• The display pattern can be selected from 4 patterns. (G/Locus mode is added by system updating.)
• Data obtained from 3 different devices can be displayed in one screen: Location information from GNSS, ISO CAN data from OBDII and Sensor information by linking with the ADVANCE system.
• Sequential indicators of 10 red LEDs
• Driving data can be recorded, replayed, and analyzed by using a commercially available USB flash drive. The system can be updated too. (*A PC wired to the internet is necessary to analyze data and update the system)
• A separate switch unit which is easy to push by fingers with racing gloves is included in the package.
• Mounting brackets are included and the paper templates are attached.

*NOTE: Regarding compatibilities of OBDII and ADVANCE System: CAN OBDII is generally only featured on 2008+ vehicles, however we don’t have information on compatibility for vehicles which are sold outside of Japan. Please make sure that your vehicle is applicable to this product before purchasing.*

Included with Display Unit:

• DSDF main unit 1pc
• Switch unit for DSDF 1pc
• Power source wire 1pc
• OBDII wire 1pc
• Solderless connector 4pcs
• Clip 1pc
• Double sided tape 1pc
• Adapter wire 1pc
• GNSS antenna 1pc
• Plastic band 5pcs
• Mounting bracket 2pcs
• M4 bolt, washer, nut, spring washer 4pcs each
• 4×12 tapping screw 2pcs and Mounting bracket 1pc for switch mounting
