CUSCO 2-Inch Lift Suspension Kit / Suzuki Jimny JB74

CUSCO 2-Inch Lift Suspension Kit / Suzuki Jimny JB74
SKU: 60N-6JS-U20

Vehicle height adjustment range +50 to +75mm

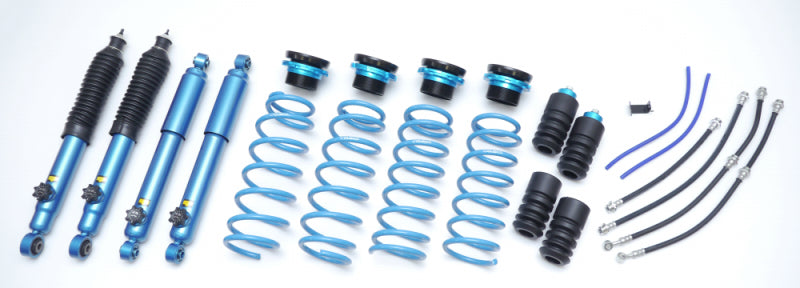

Kit contents:
Shock absorber x 4, spring x 4, screw spacer x 4,
large capacity bump rubber x 4 (soft specification) — Hard specification option available
Extended brake hoses

Adopts specially designed large-capacity dual-tube shock absorber
A double-tube shock absorber is used to secure a sufficient amount of oil in the spacious shell case to ensure a mild ride at all times , and to exhibit smooth damping force characteristics. It offers both a smooth ride and high driving performance.

Front and rear damping force 14 steps adjustable
14 stages of damping force adjustment to accommodate every driving scene. Equipped with a large dial for easy adjustment. Adopts a twin rotary valve type damping adjustment mechanism with an even and wide adjustment range from 1 to 14 steps.

Front and rear screw spacer vehicle height adjustment type
Adopts a screw spacer type vehicle height adjustment mechanism that allows vehicle height adjustment in millimeter units. In addition to the cationic electrodeposition coating that is resistant to rust, it has a flat top finish that prevents the screw threads from being crushed even by stone chips.
Spacer screws are made of steel with a cationic electrodeposition coating
Spring seat: Made of aluminum with blue anodized finish.

Specially designed spring
Made of high-tensile steel with a tensile strength of over 200kgf/mm2, and a specially designed spring that is resistant to fatigue. The base of the spring painting is treated with a special coating that is resistant to rust, and the finish is a powder-baked paint finish that is flexible and has high adhesion, achieving extremely high durability.

Not in stock?
If this product is not in stock it can be sea or air freighted depending on the urgency. 5-7 days (air freight) or 2-3 months (sea freight). Email performance@nst.co.nz to order.
