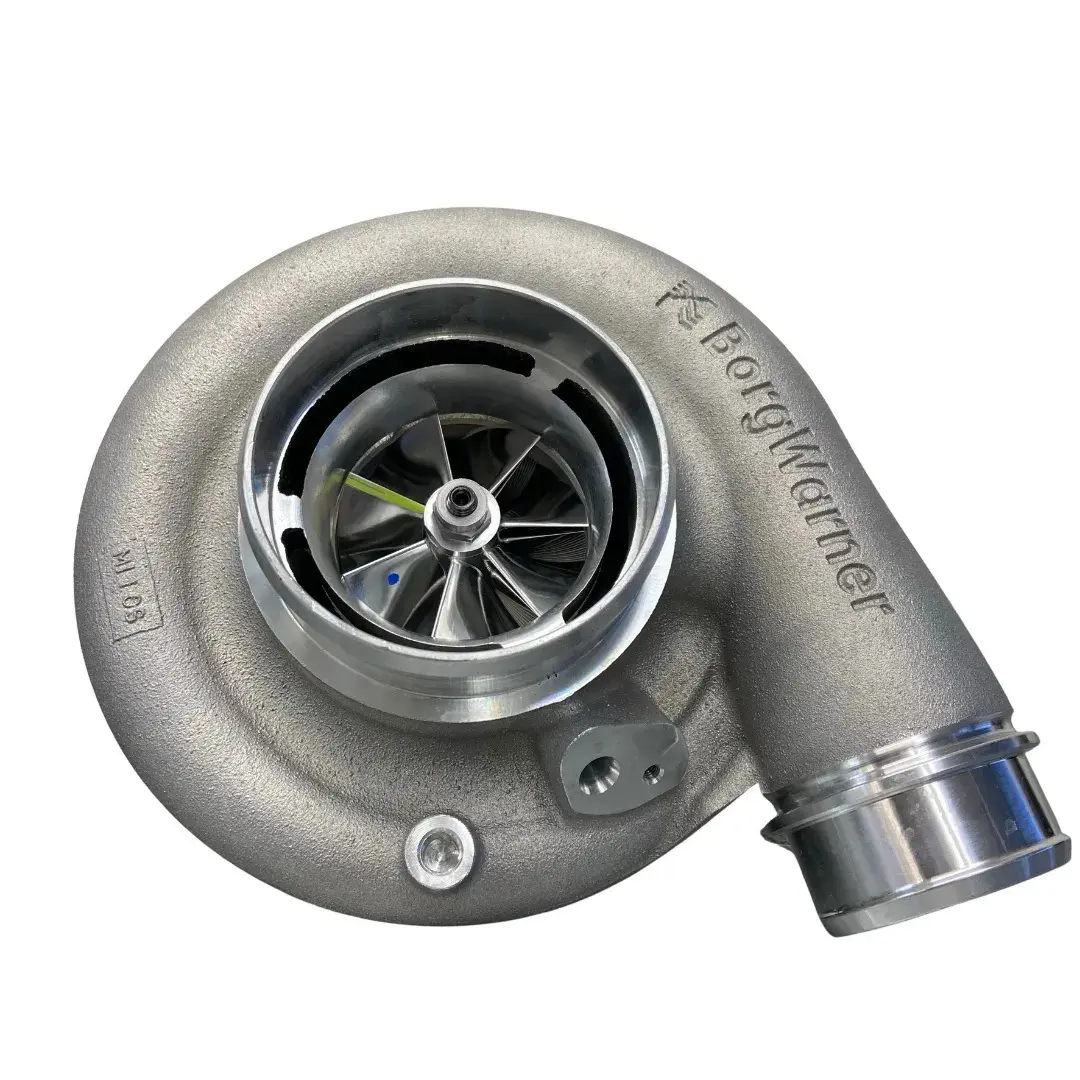

BorgWarner S300SX-E Super-Core "S369SX-E" (91/80) Super-Core Turbocharger

Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Inducer: 68.00mm
Compressor Exducer: 91.44mm
Turbine Inducer: 79.76mm
Turbine Exducer: 73.37mm
Bearing Type: Journal Bearing Bearing
Cooling: Oil

Turbine Housing Options: None (Supercore Only)
Turbo Features:
360 degree thrust bearing
Integrated speed sensor port
Forged milled compressor wheel
Flexible compressor cover outlet options
Pre-machined boost port
Optimized compressor stage aerodynamics

Product Notes: This Supercore option is not supplied with a turbine housing, however it is supplied with turbine housing mounting hardware, clamp plates and cap screws.

Exhaust Turbine housing options (ontop of this Supercore)
177211 - S300SX Turbine housing .88A/r T4SE
177208 - S300SX Turbine housing .91A/r T4DE
179905 - S300SX Turbine housing 1.00A/r T4DE
