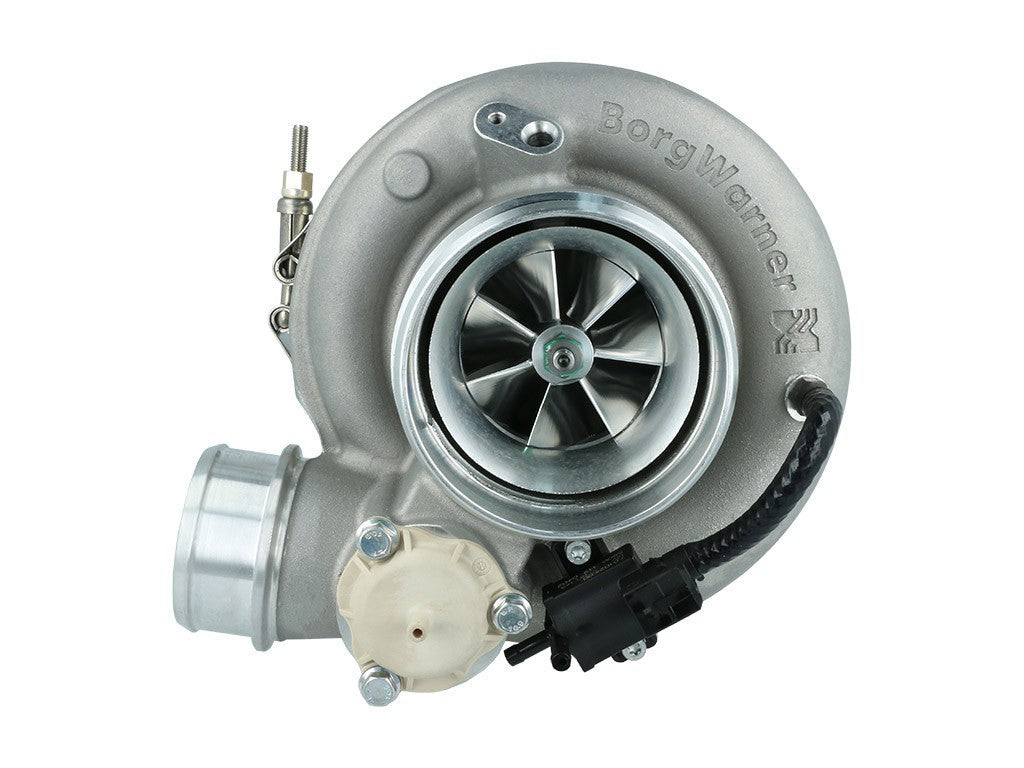

BorgWarner EFR 9280 Super-Core Aluminium

Turbo Family: EFR 9280 Super-Core Aluminium "Black Edition"
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Inducer: 74mm
Compressor Exducer: 91mm
Max Flow Rate: 110 lb/min
Built-in BOV: All EFR compressor housings incorporate an integrated BOV.
Turbine Inducer: 80mm
Turbine Exducer: 73mm
Compressor A/R: .57
Bearing Type: Ball Bearing
Bearing Cooling: Oil & Water

Flange Details:
Compressor Inlet Flange: 4.0" Hose
Compressor Outlet Flange: 2.5" Hose with integrated V/band option

Turbo Characteristics:
Turbo Size: Large frame
Intended Application: Medium to High power
Expected Power Output: 600 to 1000 HP : 447 to 745 kw

Additional Comments:
Dual Row Ceramic Ball Bearings � lowest friction and fastest spool/response, most extreme durability, built-in 2mm oil restrictor
Watercooled Center Section � watercooling is recommended, 14mm banjo bolts
Double seals on both turbine and compressor end for extreme durability and resistance to any oil seepage
Boost Control Solenoid Valve Integrated to Compressor Housing
Integrated Speed Sensor mounting provisions
Requires Aluminium clamp kit for installation 5900-711-9005
