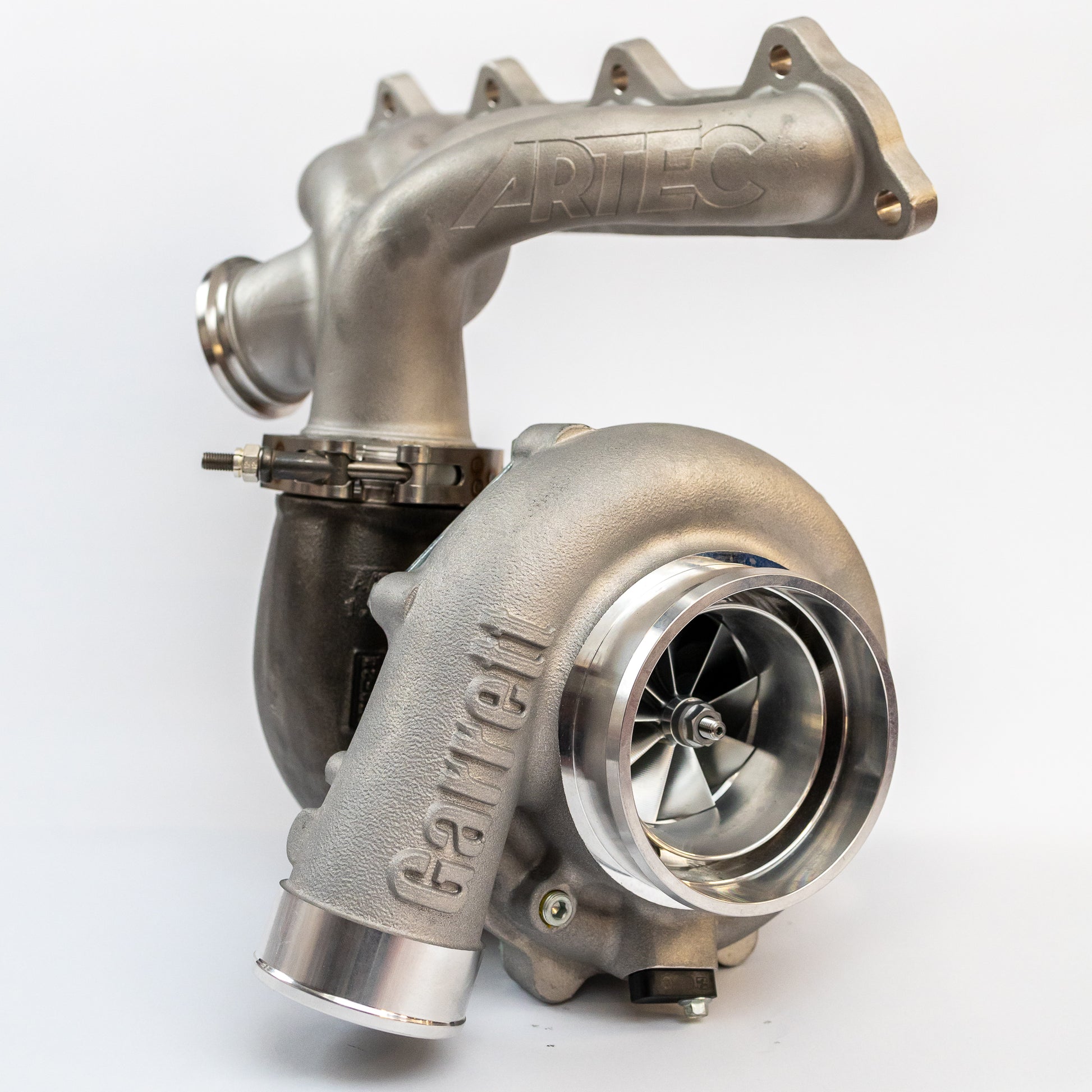

ARTEC x GARRETT G35-900 (1.01AR) 4G63 Turbo Kit

ARTEC x GARRETT G35-900(1.01AR) 4G63 Turbo Kit

ARTEC Performance Mitsubishi Evo 4-9 Exhaust Manifold Low Mount V-Band (Reverse Rotation)
SKU: AEXH-4G63-VBRR

Objective of Evo manifold design:Reduce manifold internal volume to sharpen response
Maintain high flow rate
Non-traditional reverse rotation design used
Reverse rotation design eliminates the need for tight radius bends
Turbo inlet flange positioned closer to the block
Low-mounted turbo
Compact manifold design
33mm runner ID for fast transient throttle response
Compatible with Precision, Tial, or Garrett turbo fitments using the 50-55 v-band system
Wastegate flange designed to fit most 44/45/46mm wastegates

Garrett G35-900 Super Core (Reverse Rotation)
SKU: 880696-5001S

Horsepower: 550 - 900HP
Displacement: 2.5 - 5.5L
Garrett® G Series Compressor Aerodynamics for maximum HP.
Fully machined Speed Sensor and pressure ports.
New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
Oil restrictor and water fittings included.
Reverse rotation.
Compressor side: TRIM 65 A/R 0.72
Compressor Air Inlet: Hose 4.00" (101.60mm)
Compressor Air Outlet: Hose 2.00" (51.15mm)
Bearing housing: Water and Oil cooled system.

Garrett G35/1.01 (V-bands) Turbine housing (Reverse Rotation)
SKU: 740902-0114

Stainless Steel turbine housing capable of 1050°C.
TRIM 84 A/R 1.01 - Reverse
Inlet: V-Band 3.00" (76.20mm)
Outlet: V-Band 3.55" (90.16mm)
Free float
Includes V-bands
