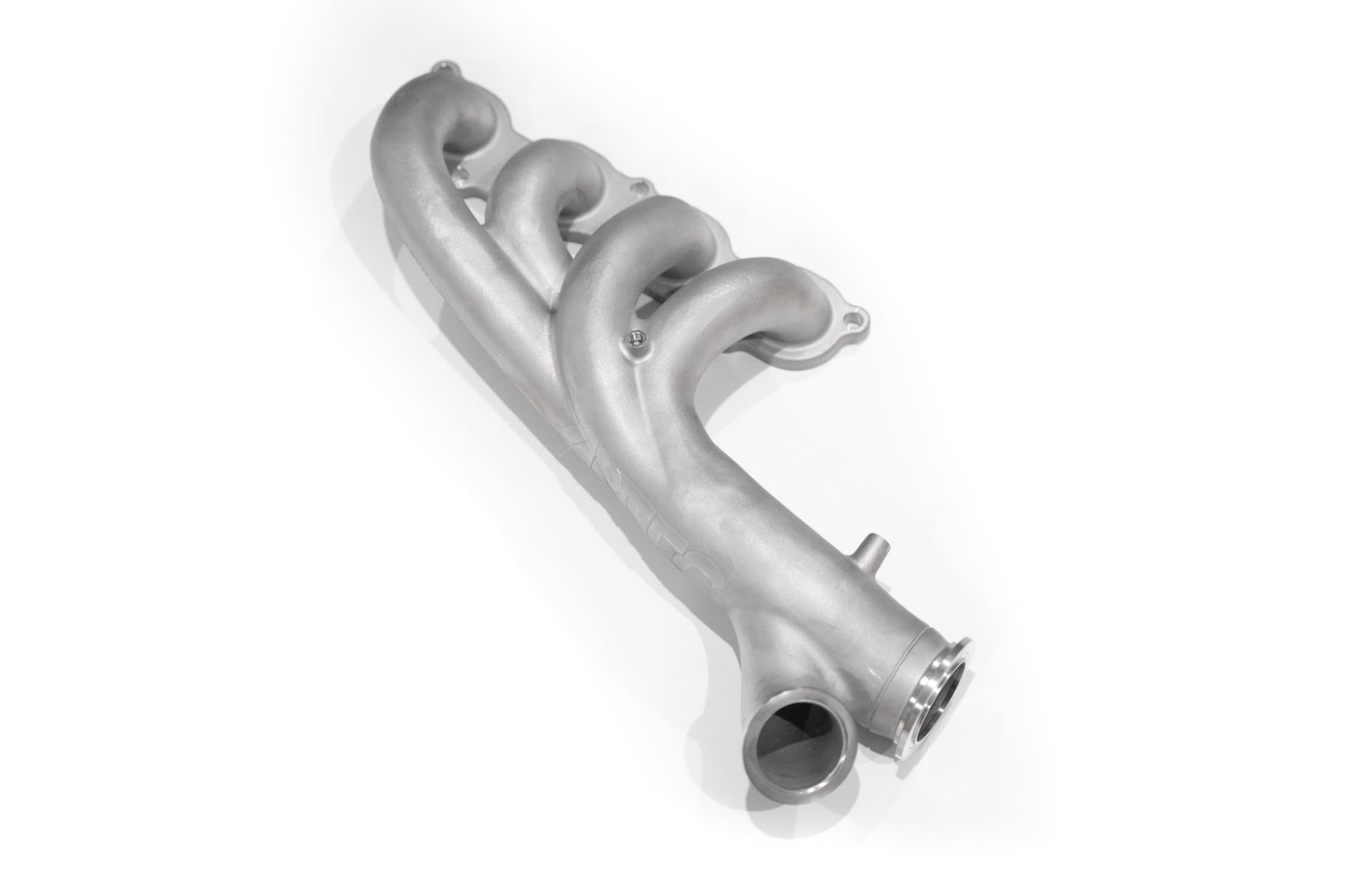

ARTEC Performance Honda K Series Sidewinder V-Band Exhaust Manifold

ARTEC Performance Honda K Series Sidewinder V-Band Exhaust Manifold
SKU: AEXH-KSERIES-VB

• Turbo design: Turbo inlet kept square to the engine, not facing the center line
• Boost control: Aimed for best-in-class control without requiring a massive wastegate
• Manifold machined to accommodate 44/45/46mm wastegate range
• Option to cut the flange and use a 50mm wastegate
• Internal sizing and flow surpass a 50mm wastegate unit
• Industry-first feature: 4" downpipe with clearance for LHD brake master cylinders and booster
• Enables wastegate plumb back and provision for wideband screw-in
• Turbo system support: Mount near the turbo flange for additional brace to support weight
• Material: SUS347 Stainless Steel Investment Cast Construction
• Dump and manifold provisions:
• Option to run a brace to alleviate weight on V-Band flange
• Dump specifics: Machined for 3.5" V-Band flange
• Facilitates easy fabrication of a full 3.5" exhaust or 3" system
• Innovative V-Band mounting system:
• Manifold includes a 50-55mm V-Band mounting system
• Allows for turbos ranging from G25 to 6870
• Future release of a weld-on piece to support 70mm V-Band flanges
• Enables use of larger turbos such as Garrett G40, G42, G45, and Precision 6870 to 8685

Not in stock?
If this product is not in stock, it can be ordered from Artec for you. Please email performance@nst.co.nz to order and to check lead times.
