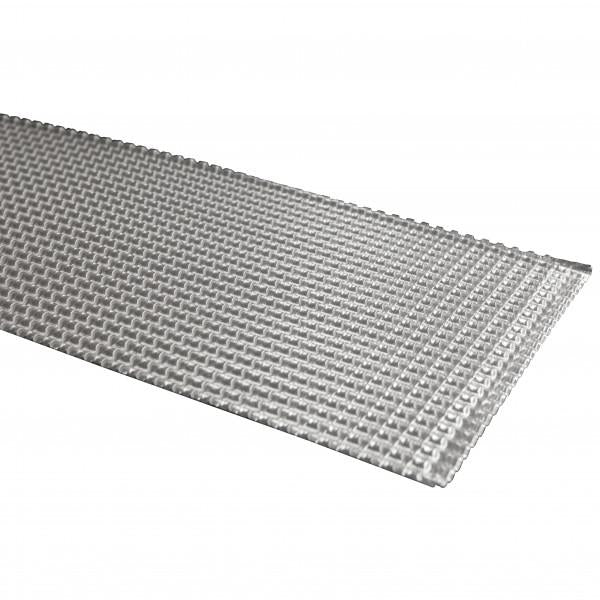

ACL Heat Shield Mat Material 700mm x 275mm

ACL Heat Shield Mat Material 700mm x 275mm
SKU: HD-5000-SML

Dimensions:
700 mm x 275 mm

Its construction, consisting of a ceramic filler sandwiched between two 0.15mm aluminised steel sheets, gives a very efficient high temperature thermal barrier suitable for a wide variety of automotive and industrial applications.
The unique double corrugation design allows the material to be formed into complex shapes and ensures exceptional rigidity.
This material provides excellent performance in high temperature, noise sensitive applications.

Material is available in a range of sizes.

MATERIAL SPECIFICATIONS
Construction:
2x aluminised steel sheet with ceramic paper insert, double corrugated
Product Thickness: 3.5mm
Max Temp: 850°C - 900°C

BENEFITS
* High Formability
* Low Weight
* Recyclable
* Thermally efficient
* Resistant to high temperature - flame proof
* Acts as a sound dampener

TYPICAL APPLICATIONS
Automotive:
* Turbo heat shields
* Catalytic converters
* Undercar exhaust
* Manifolds
* Other hotspots
Non Automotive:
* Heating/Cooling
* Marine

Corrugated Multi Layer Heat Shield Suitable for:
Turbo chargers and manifolds
Engine Bay Components

Material Properties
Rigid and robust
Maximum operation temperature 900 Degrees Celsius
