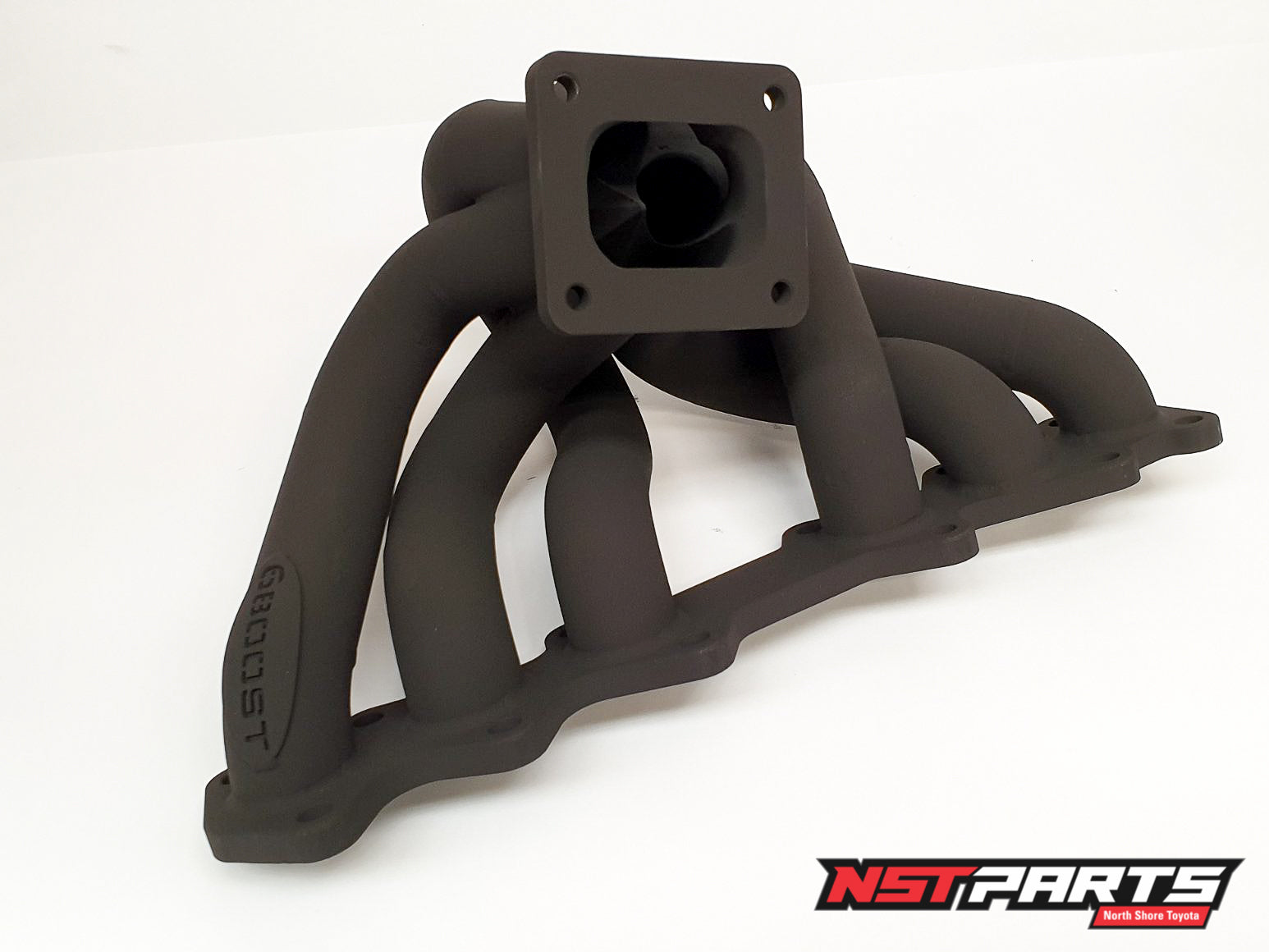

6Boost Turbo Exhaust Manifold / 1JZGTE Non VVTI / T4 Single-Entry
6Boost Turbo Exhaust Manifold / 1JZGTE Non VVTI / T4 Single-Entry
GST Included
Part Number: 1JZN-T4SE-S50
Couldn't load pickup availability
SKU: 1JZN-T4SE-S50
This manifold will suit 1JZ-GTE Non-VVTI engines originally Twin Turbo from:
JZX81 Toyota Chaser / Cresta / Mark2 / Mark 2
JZX90 Toyota Chaser / Cresta / Mark2 / Mark 2
JZZ30 Toyota Soarer
JZA70 Toyota Supra
This manifold is manufactured by 6Boost to the following specifications:
T4 Single Entry Turbine Inlet Flange
Wastegate provision for a Turbosmart or similar 45mm / 50mm or 60mm External Wastegate (no flange welded on)
The manifold is supplied with a short wastegate starter pipe, designed to allow the fabricator to choose the size of the wastegate pipe, and the position the wastegate sits in. This is why the manifolds do not have a wastegate flange welded to them.
Features:
Steampipe Construction, with Lifetime Warranty against cracking
Ideal Wastegate Port Positioning
Equal Length Runners
Internal CNC machined merge collector to take full advantage of engine exhaust gas flow
Supplied with Manifold to Cylinder Head Studs, and Turbo Mounting Studs
Supplied with T3 Inlet Gasket
Fits 99% of Engine Converted Vehicles
Not in stock?
If this product is not in stock, it can be ordered from 6Boost for you (lead time is around 10 days). Please email performance@nst.co.nz to order and to check lead times.
